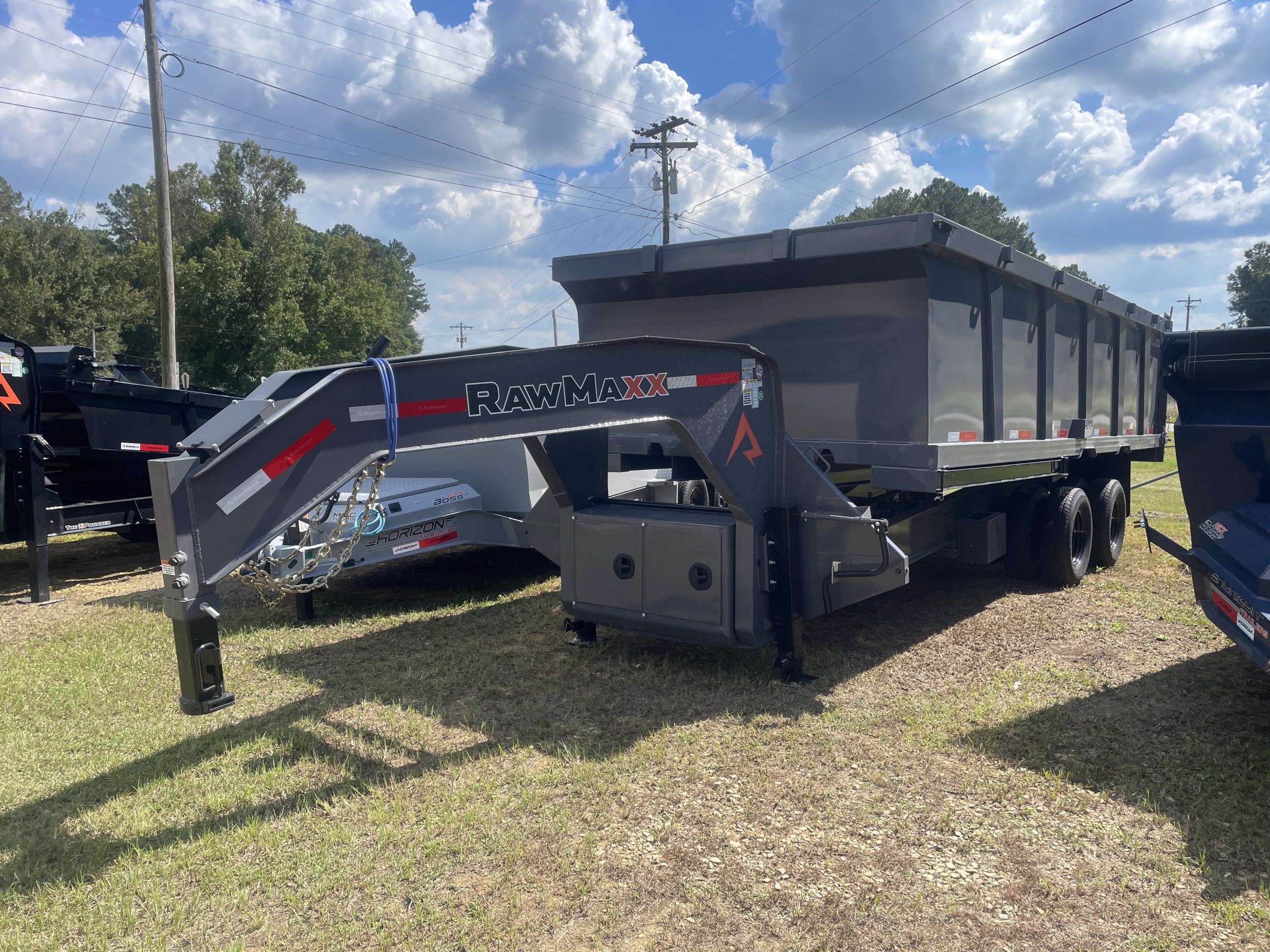

2025 Raw Maxx HDX 102×20 Gooseneck Dump Trailer 24k
HDX – 20‘ x 102” GN Dump Trailer
2-5/16” Ball 25,000 lbs Square Coupler
10” x 15 lb I-beam
Frame Engineered I-beam Tongue
3” Channel / 16” OC
2 Side Wind Drop Leg Jacks- 10,000 lbs
Inside Width: 89” – Side Height: 24”
10G Formed Walls – Grade 50 8G Steel Floor
12G Thread Plate Steel Fenders
3-7/8” x 1-13/16” (ID) Stake Pockets
4 D-Rings (Welded Inside Corners)

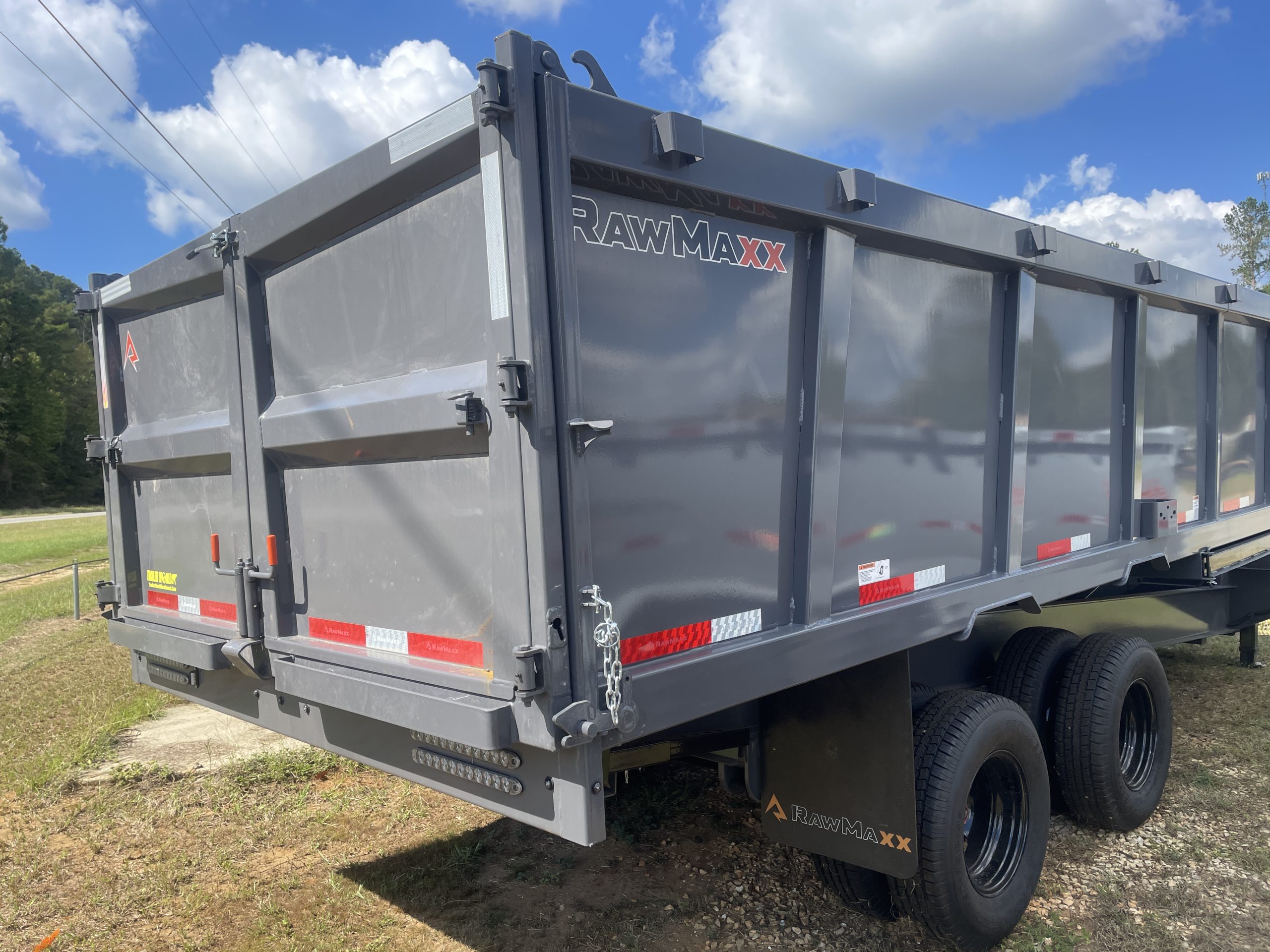

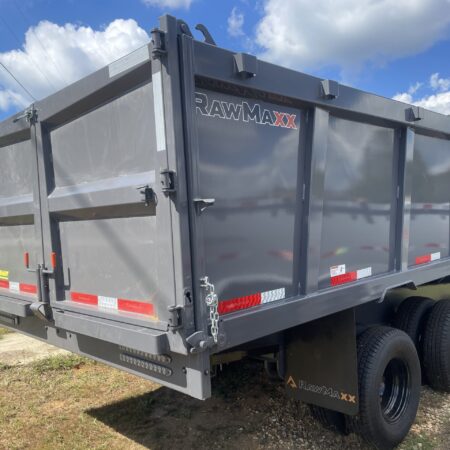

3 Way Doors
7.5′ Slide-In Channel Ramps
Front Tool Box: Between Risers

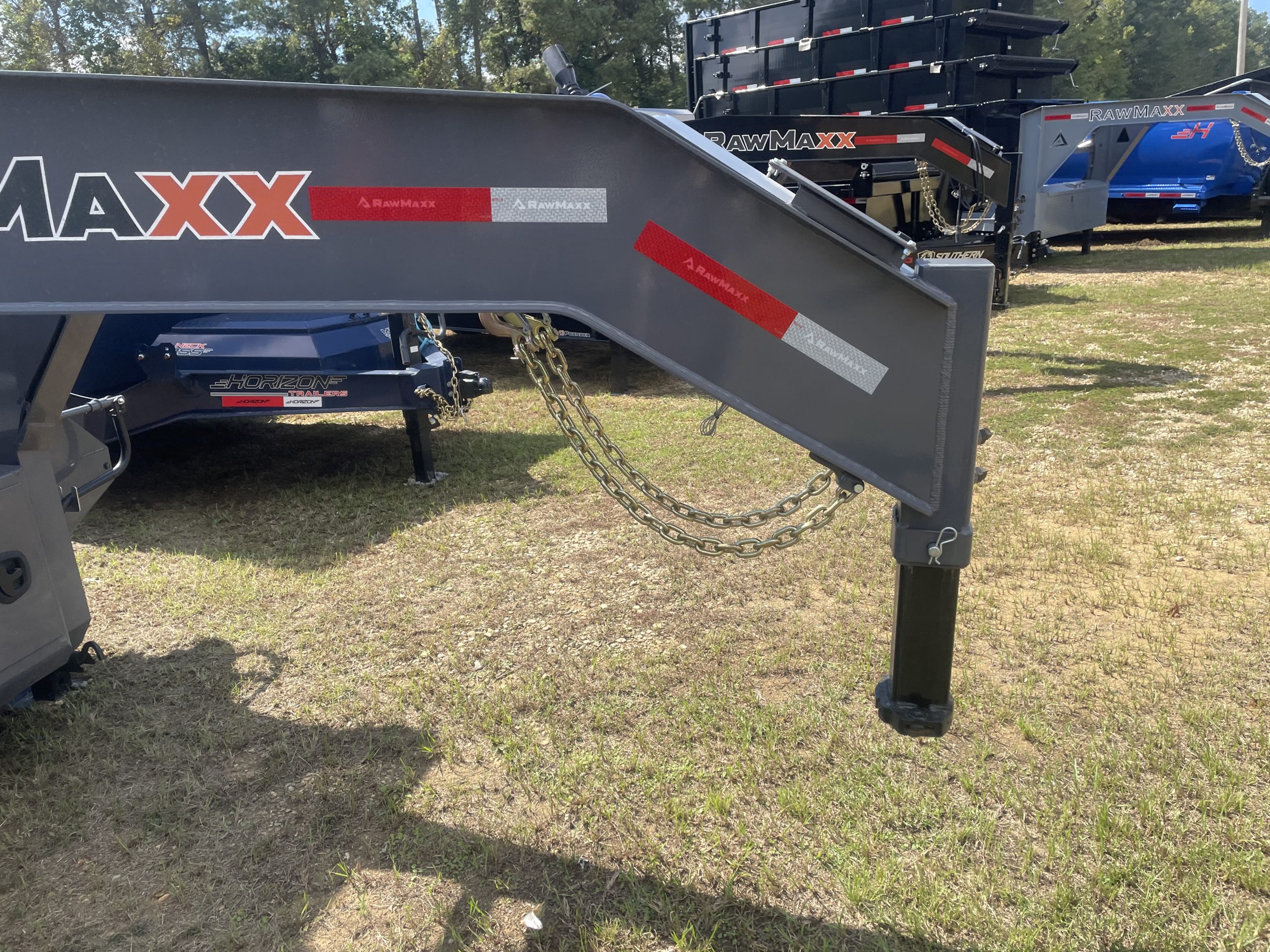

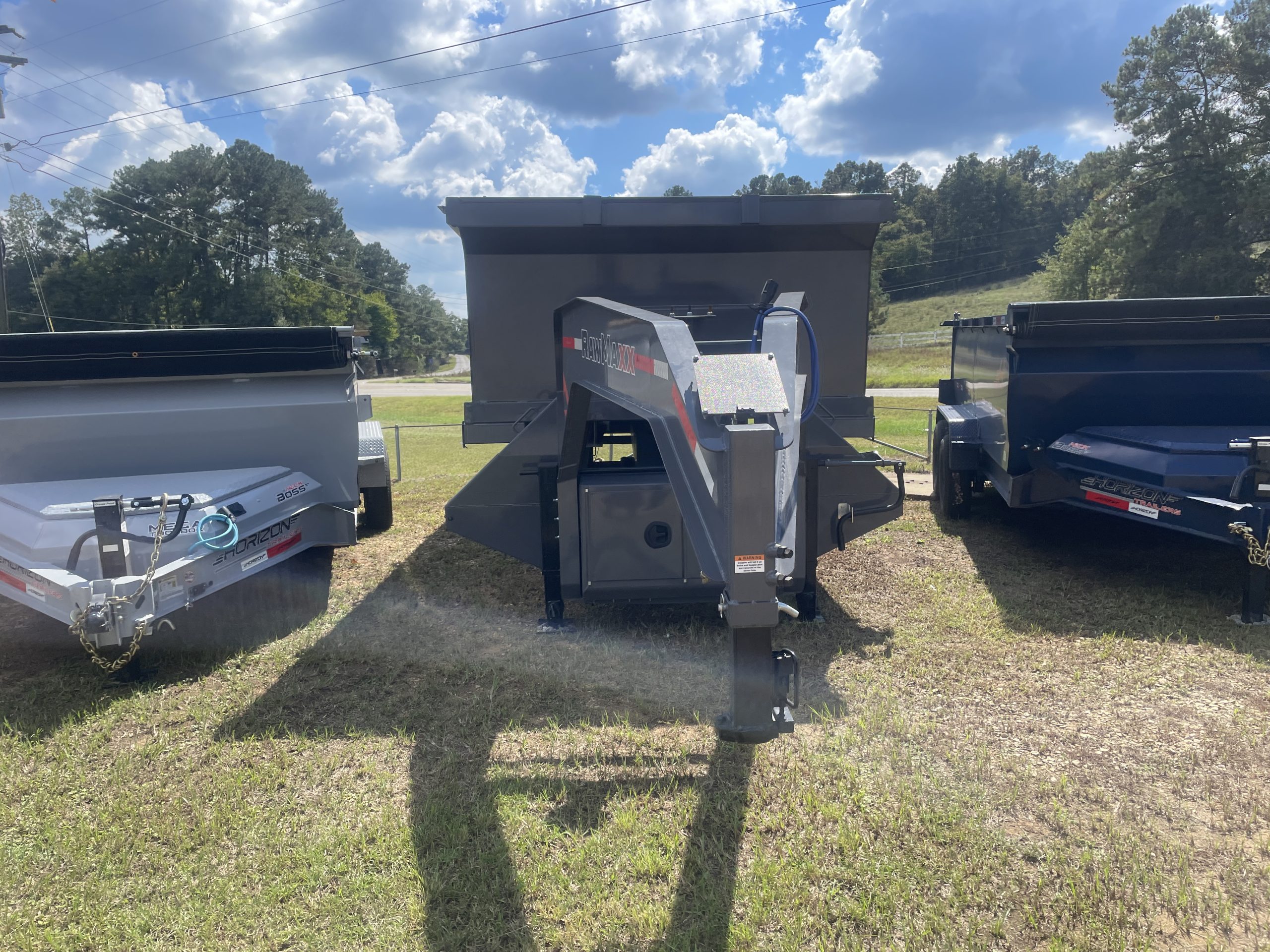

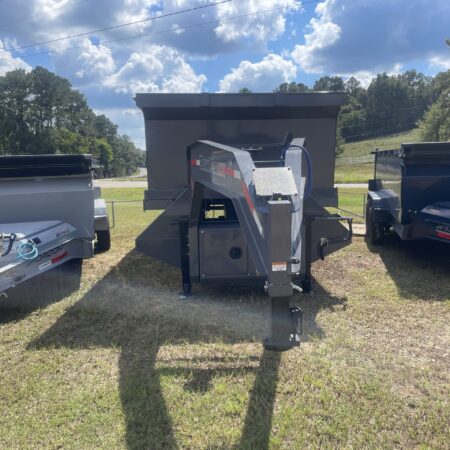

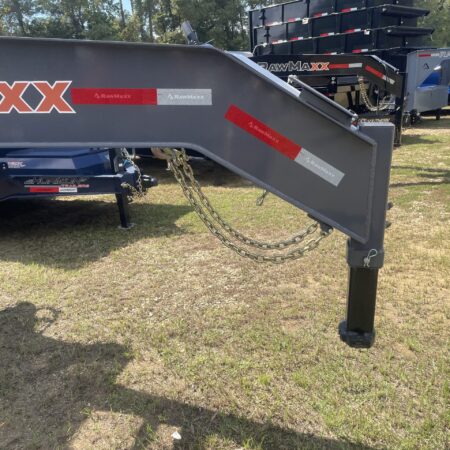

Grade 50, One-Piece Gooseneck
Hydraulic – Power Up – Down

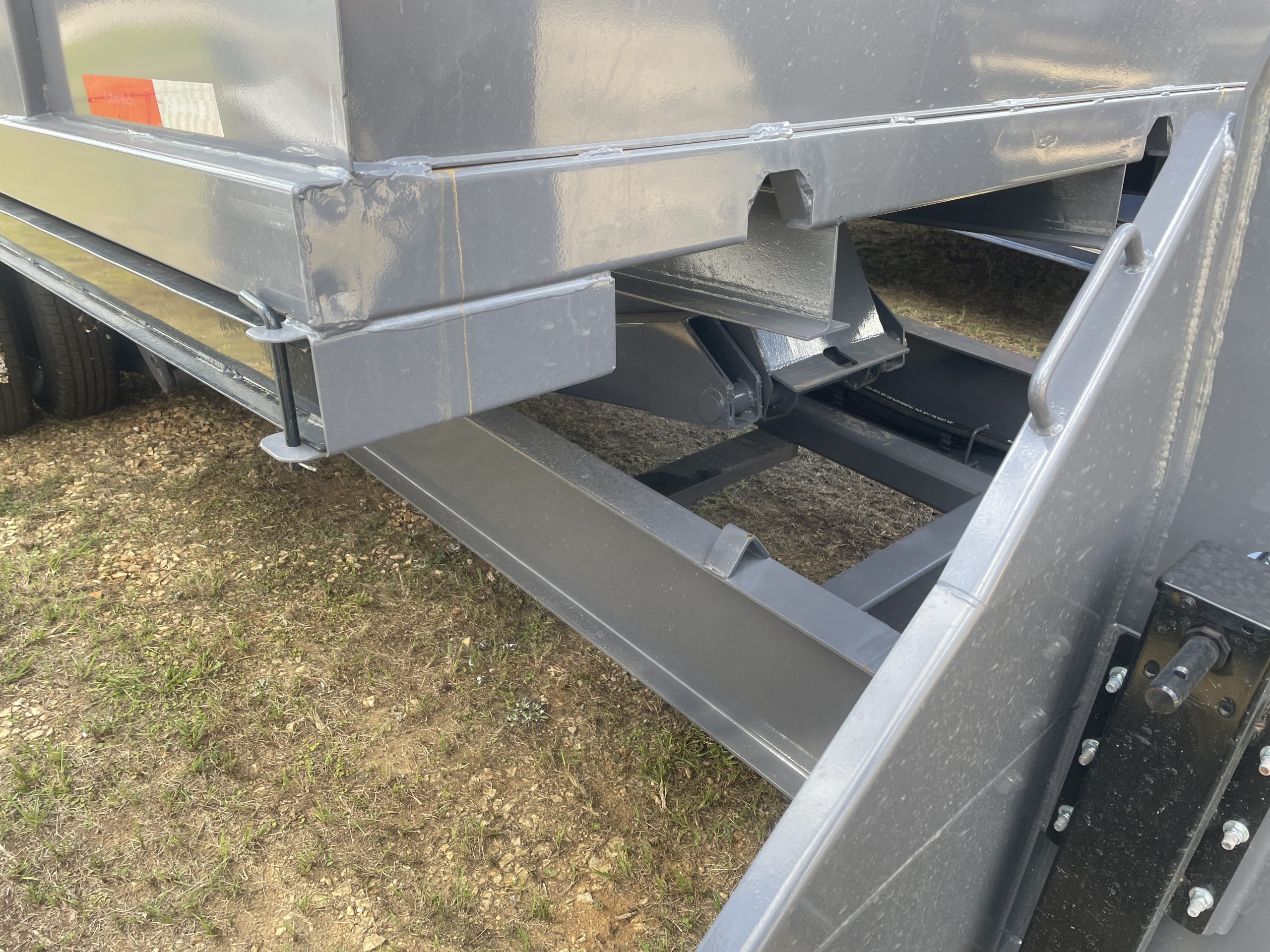

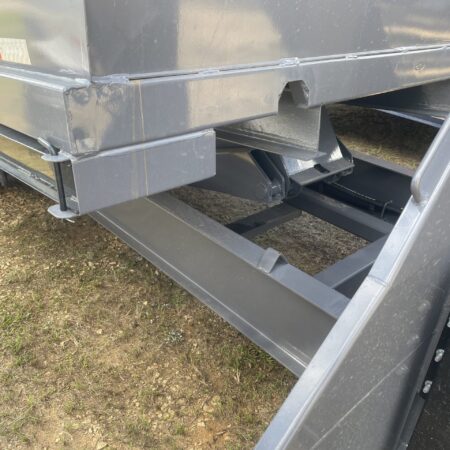

6 30 Cylinder Scissor Lift
Manual Tarp Kit

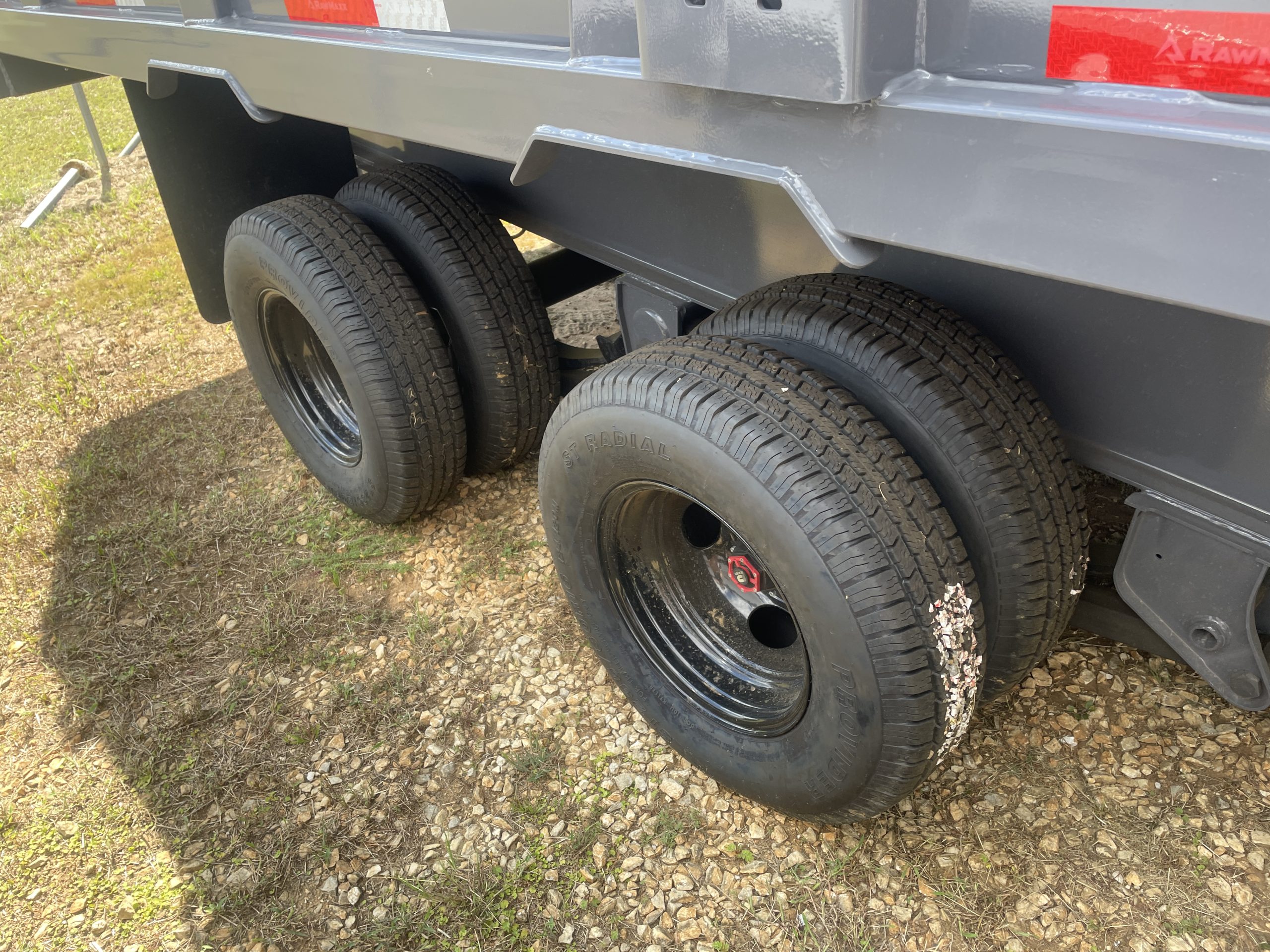

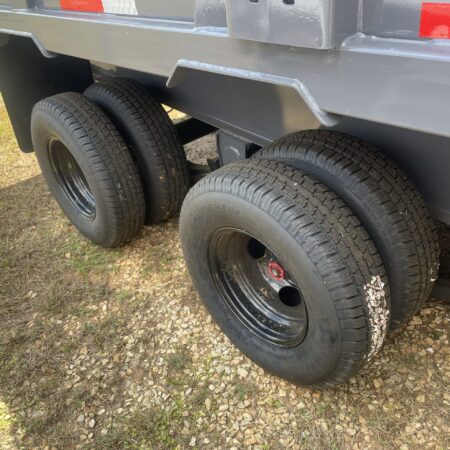

8-10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd Brakes
Stabilizer Drop Legs
3/8” G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint
44″ High Sides ( 20′ Trailer)
