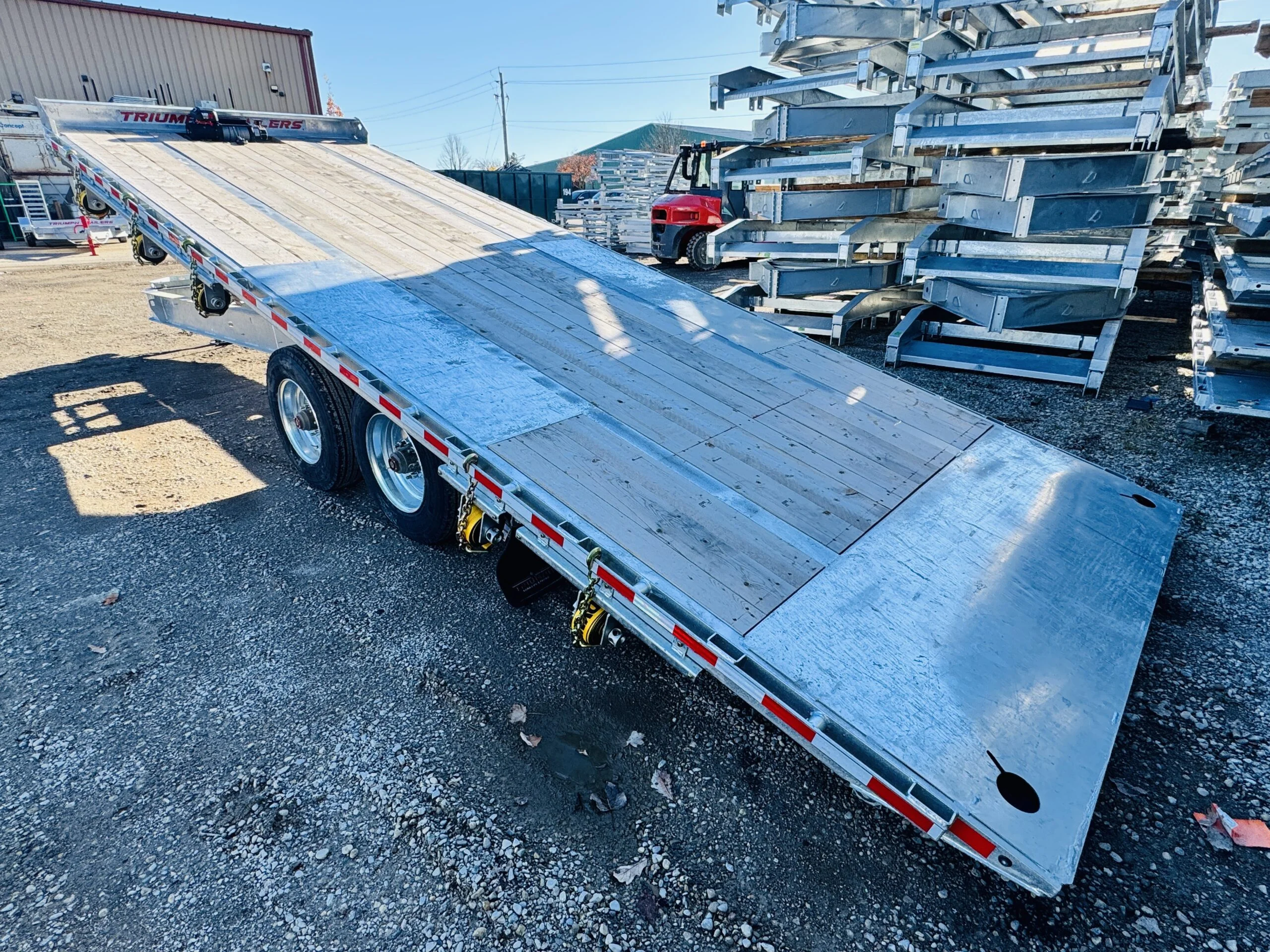

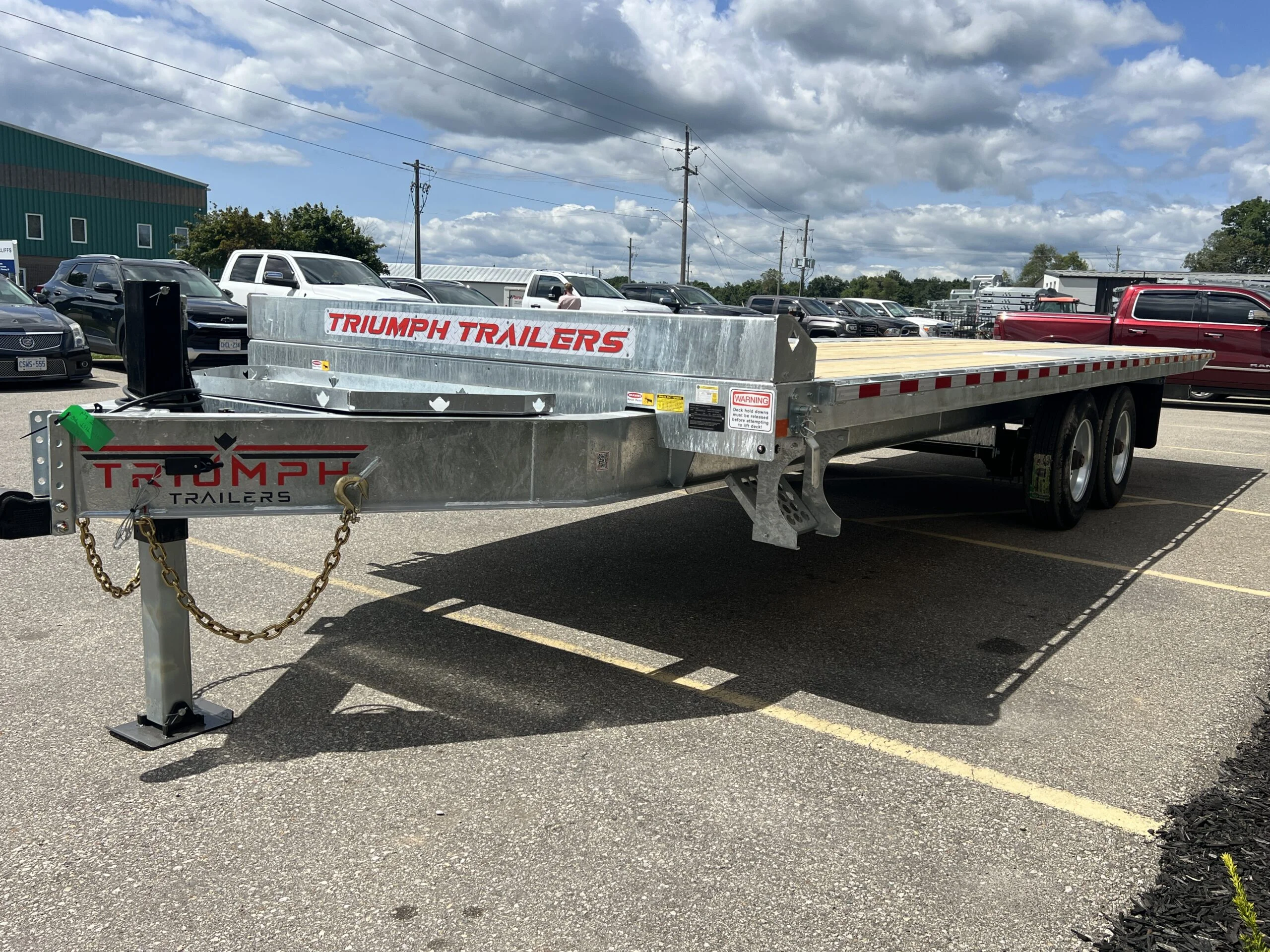

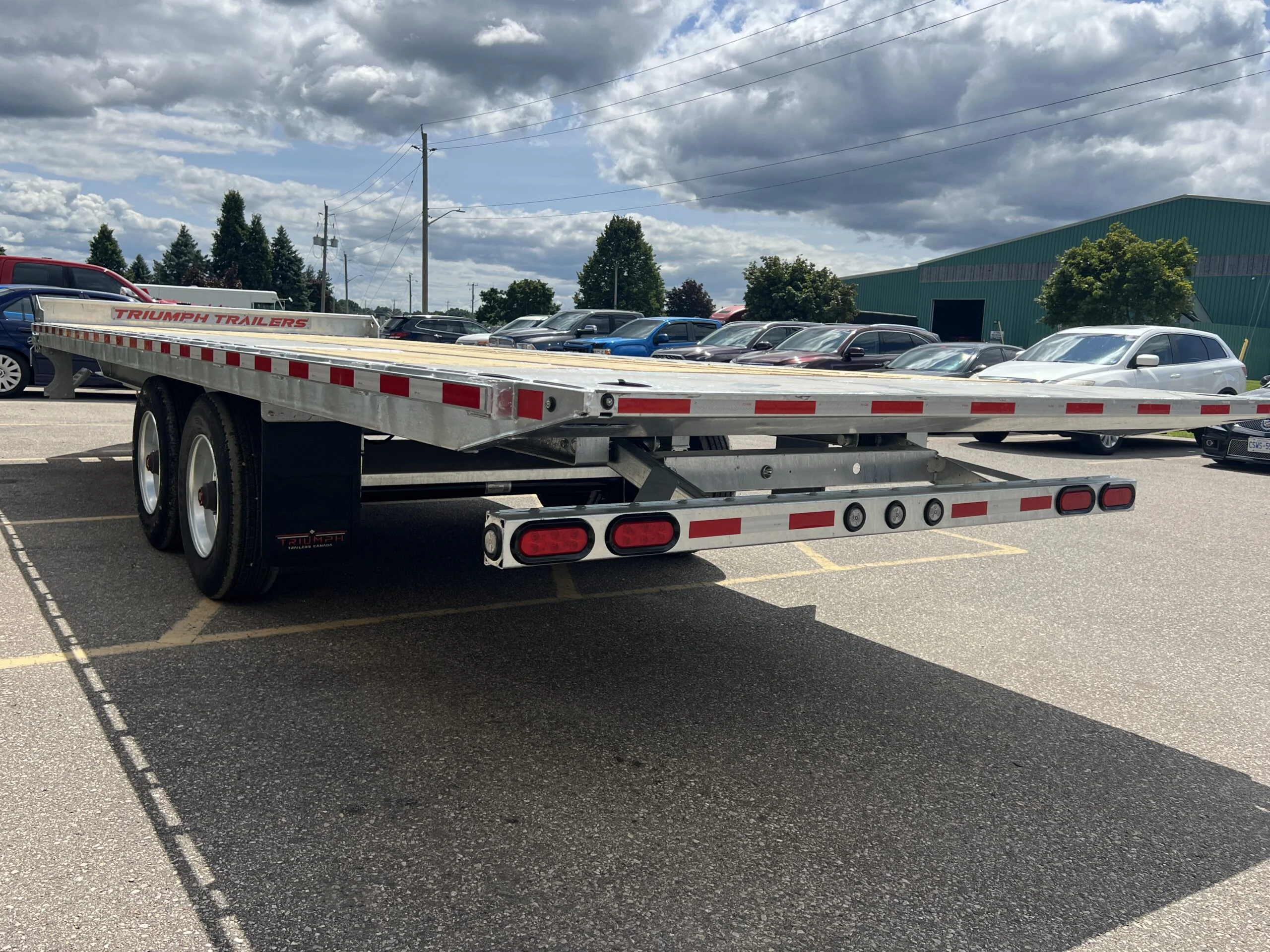

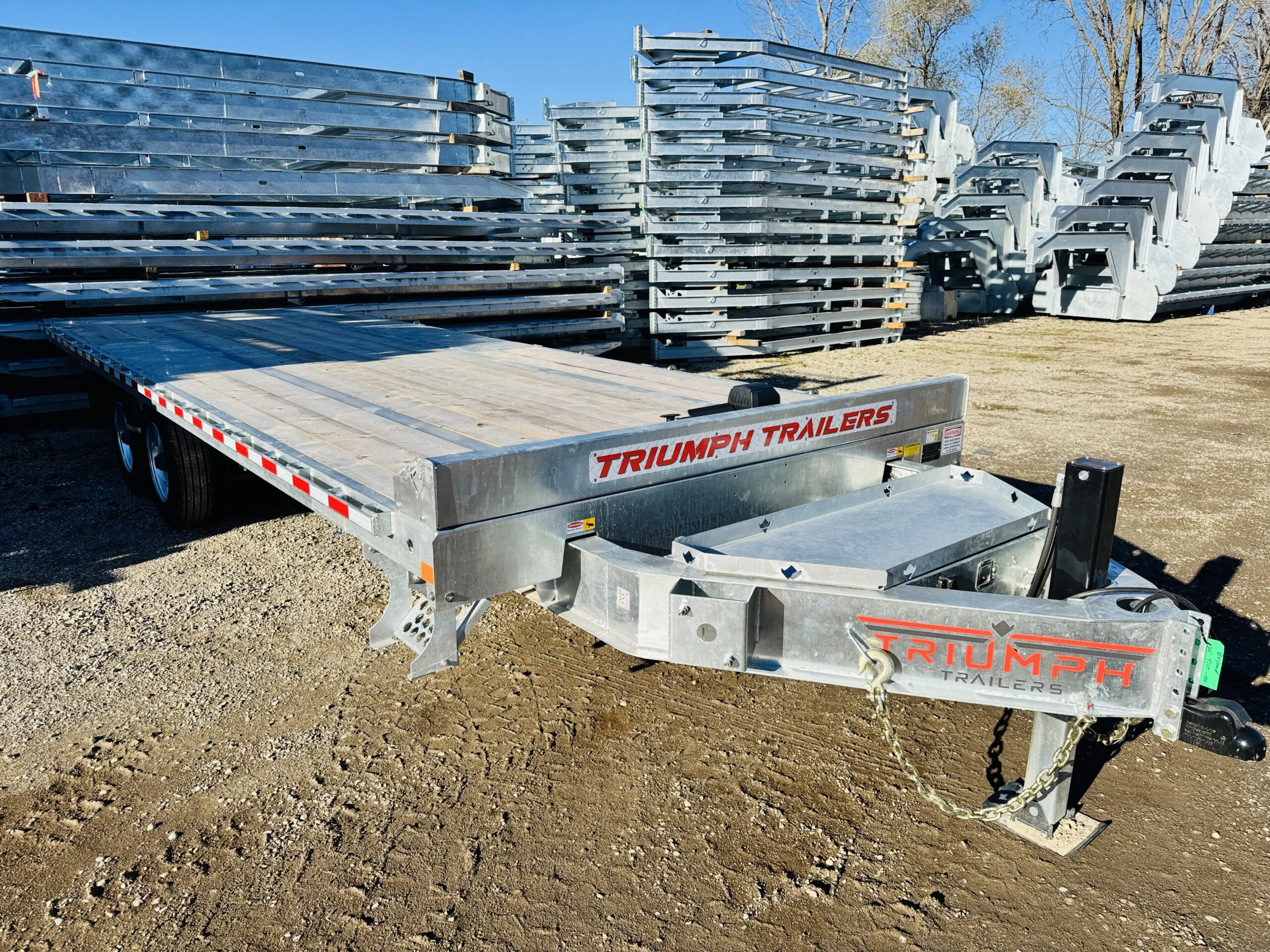

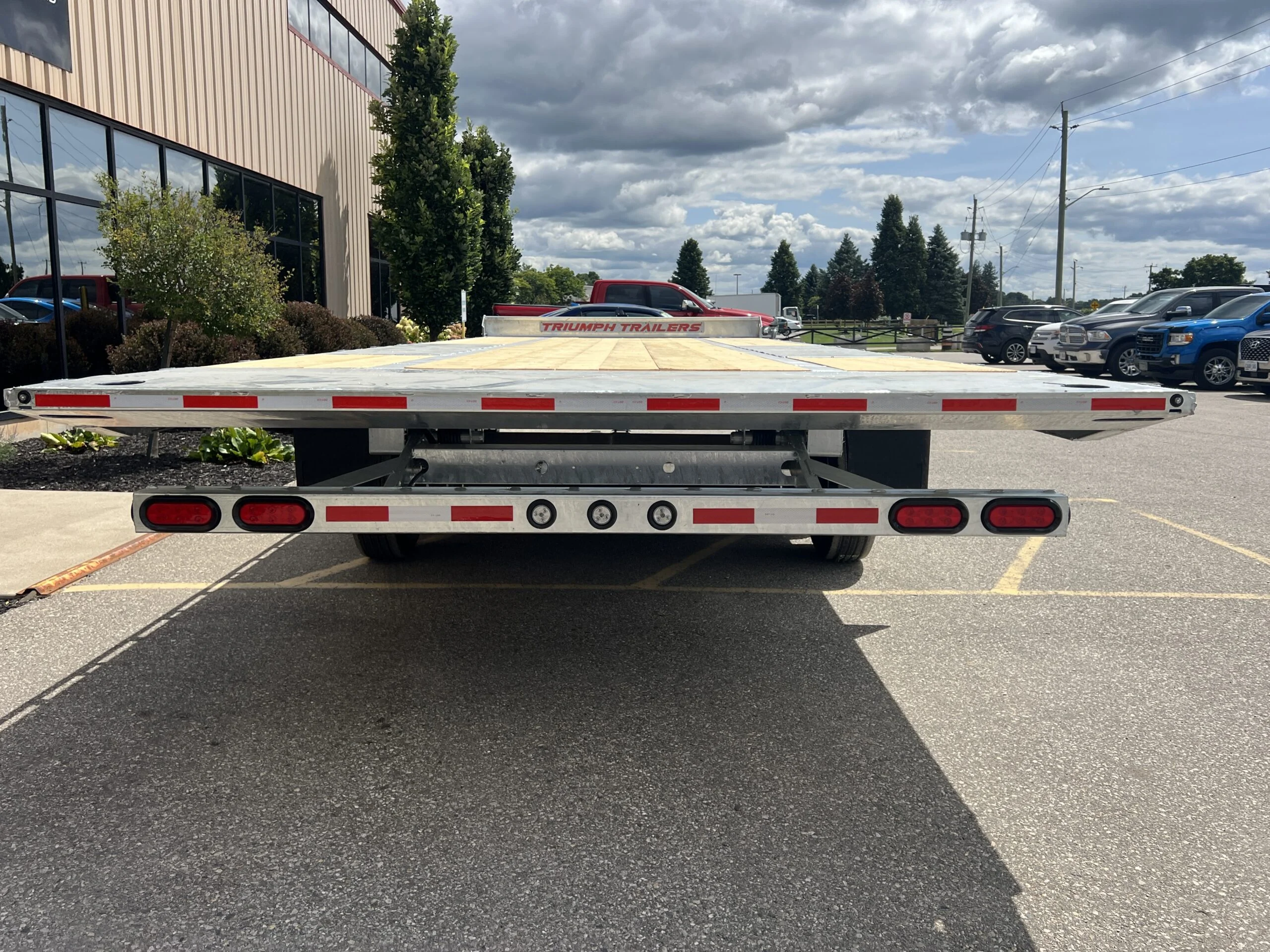

24 Foot Galvanized Power Tilt Deckover Trailer
Trailer Type: Flatbed Deckover, Tilt Trailer
Structure: Galvanized Steel
Width: 8.5′
Length: 24′
Deck Height: 32″
GVWR: 20000 lbs
Payload: 14700 lbs
Trailer Weight: 5,300 lbs
Axle Weight Rating: 2×10,000 lbs
Coupler Style: Bumper Pull, Pintle Hitch
Ball Size : 2 5/16” Adjustable, Pintle Ring
Tilt Angle: 15 degree
Heavy-Duty Construction

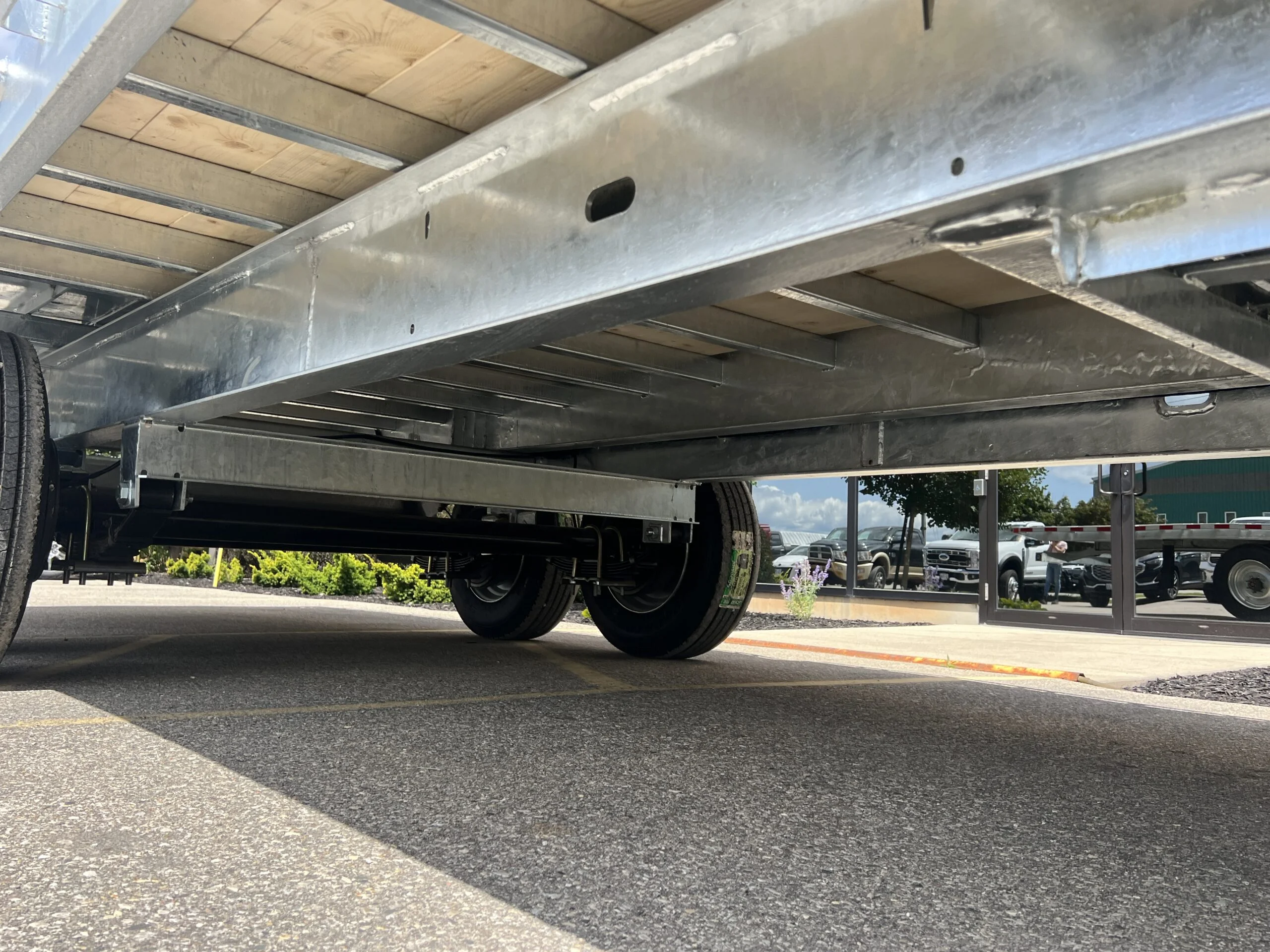

- 10″ I-beam frame for superior strength and durability
- 3″ crossmembers spaced 16″ OC
- 7-gauge steel webbing

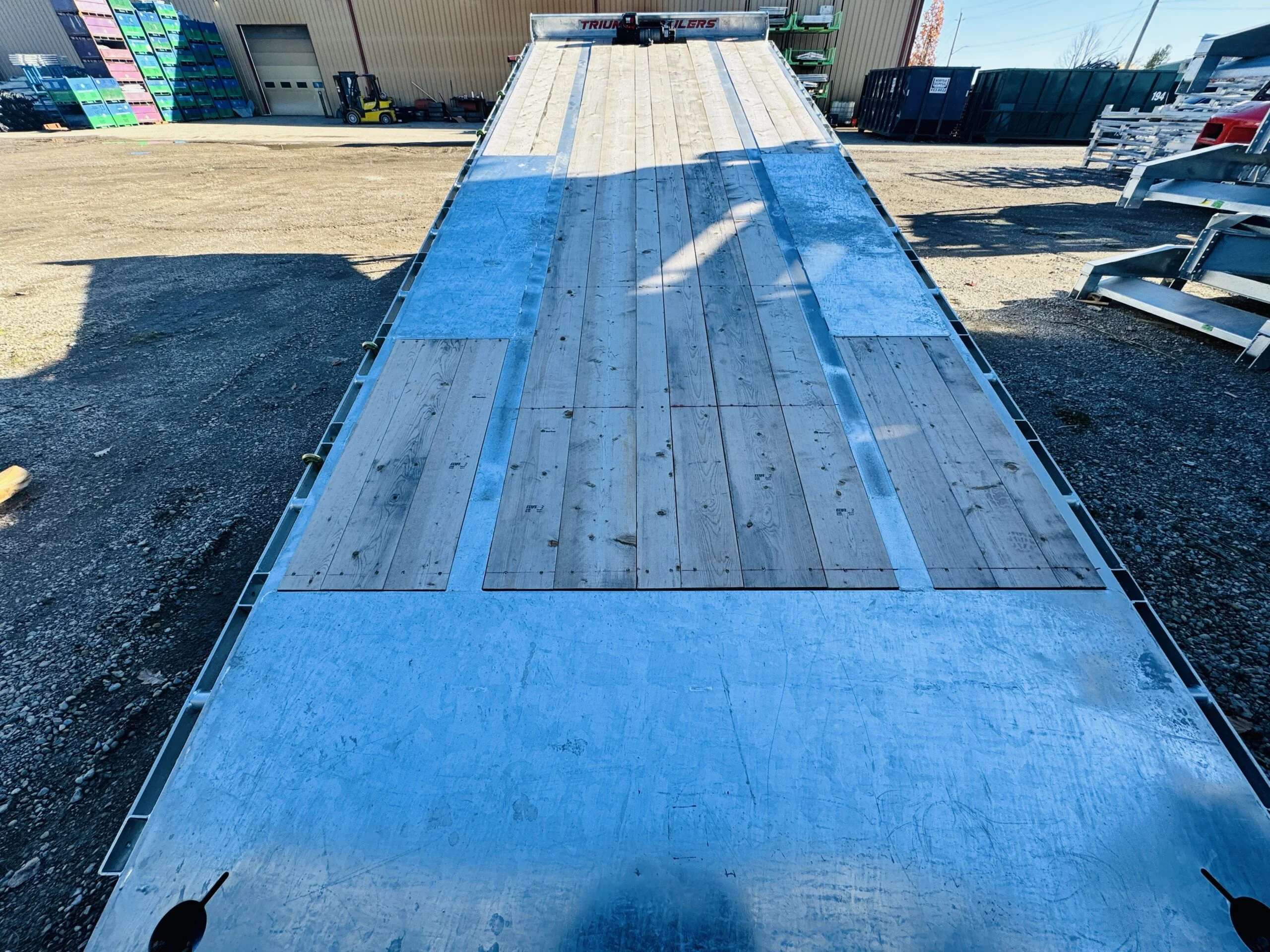

- Treated decking

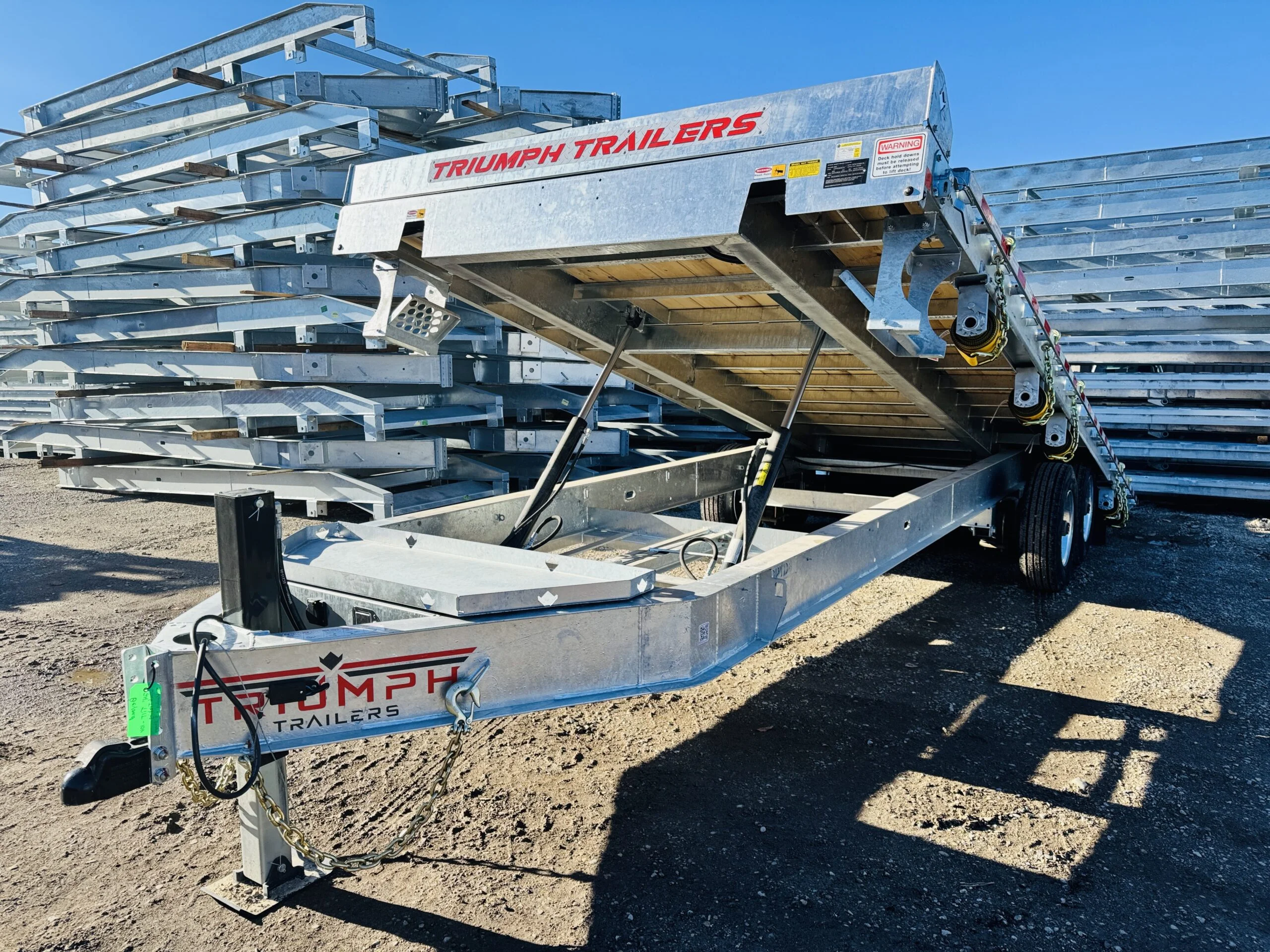

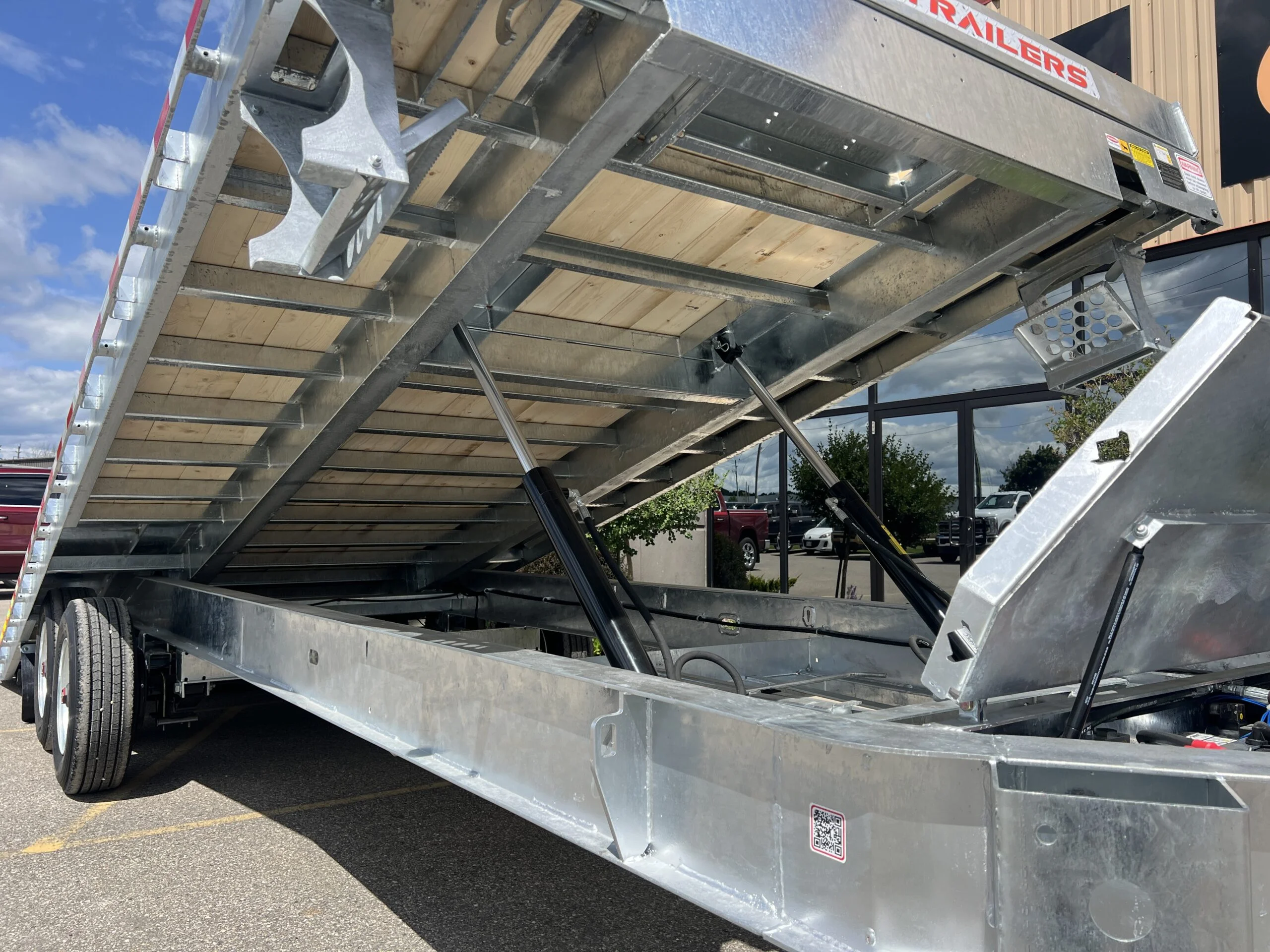

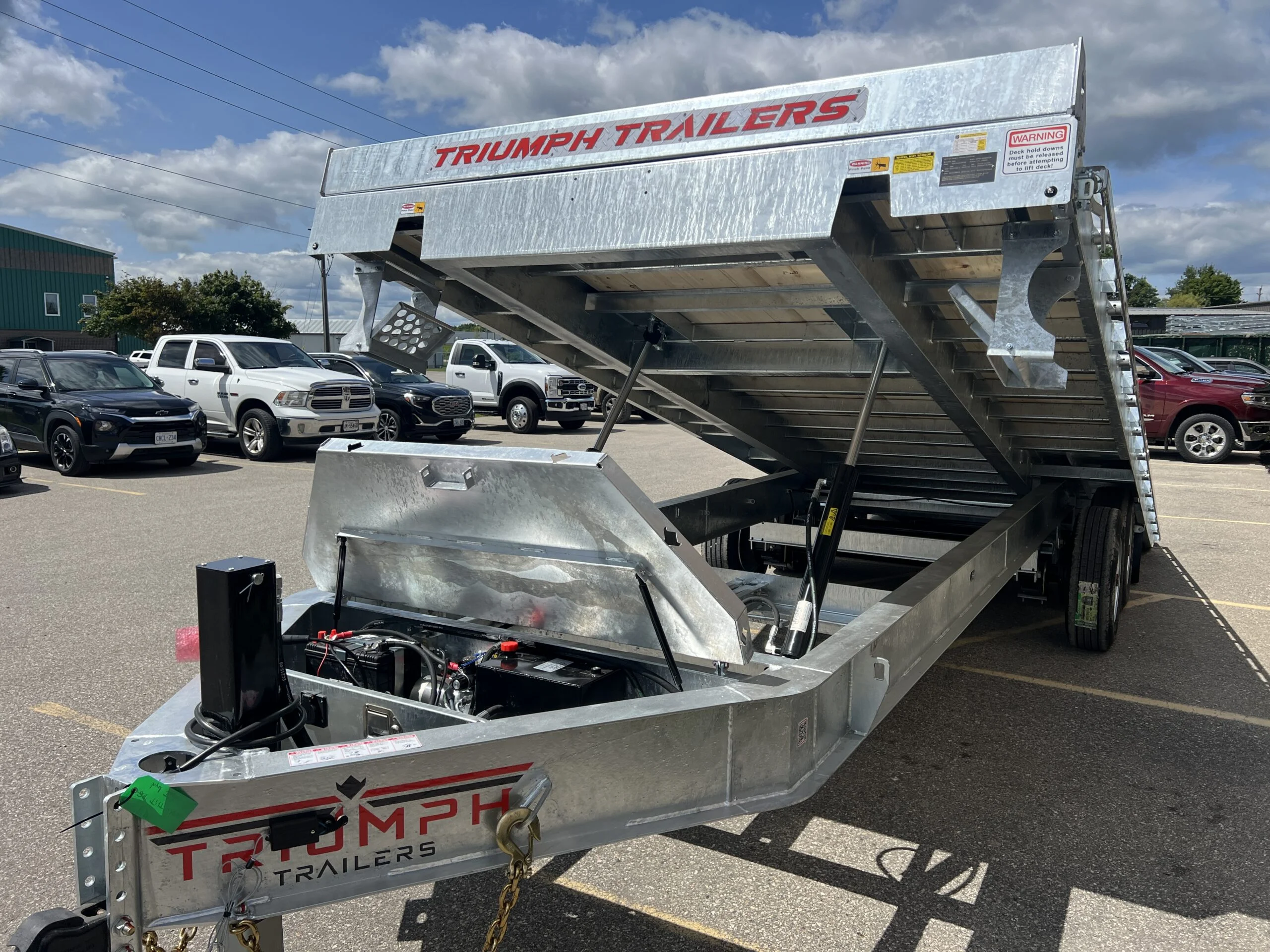

Tilt Deck & Dump Performance

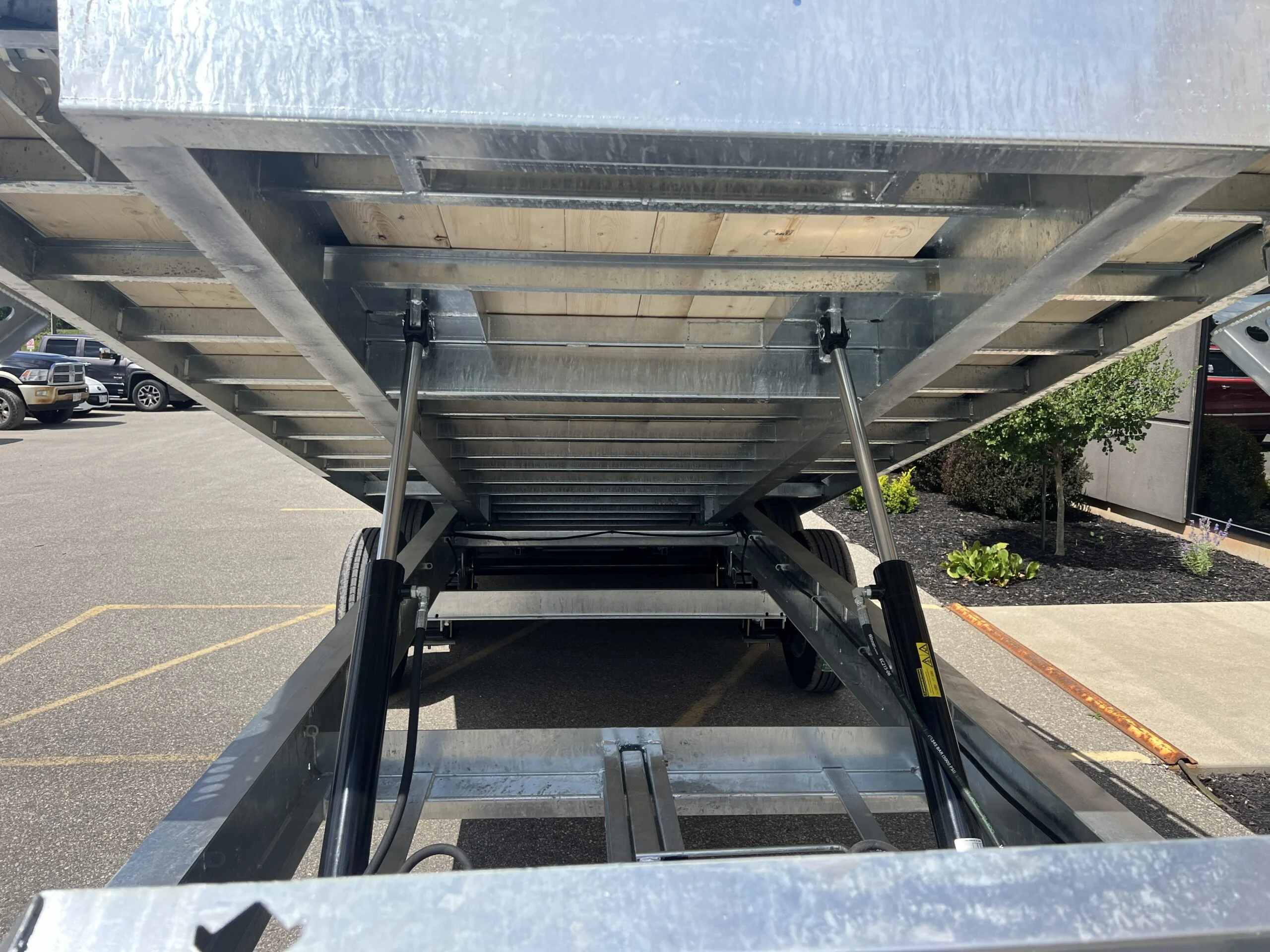

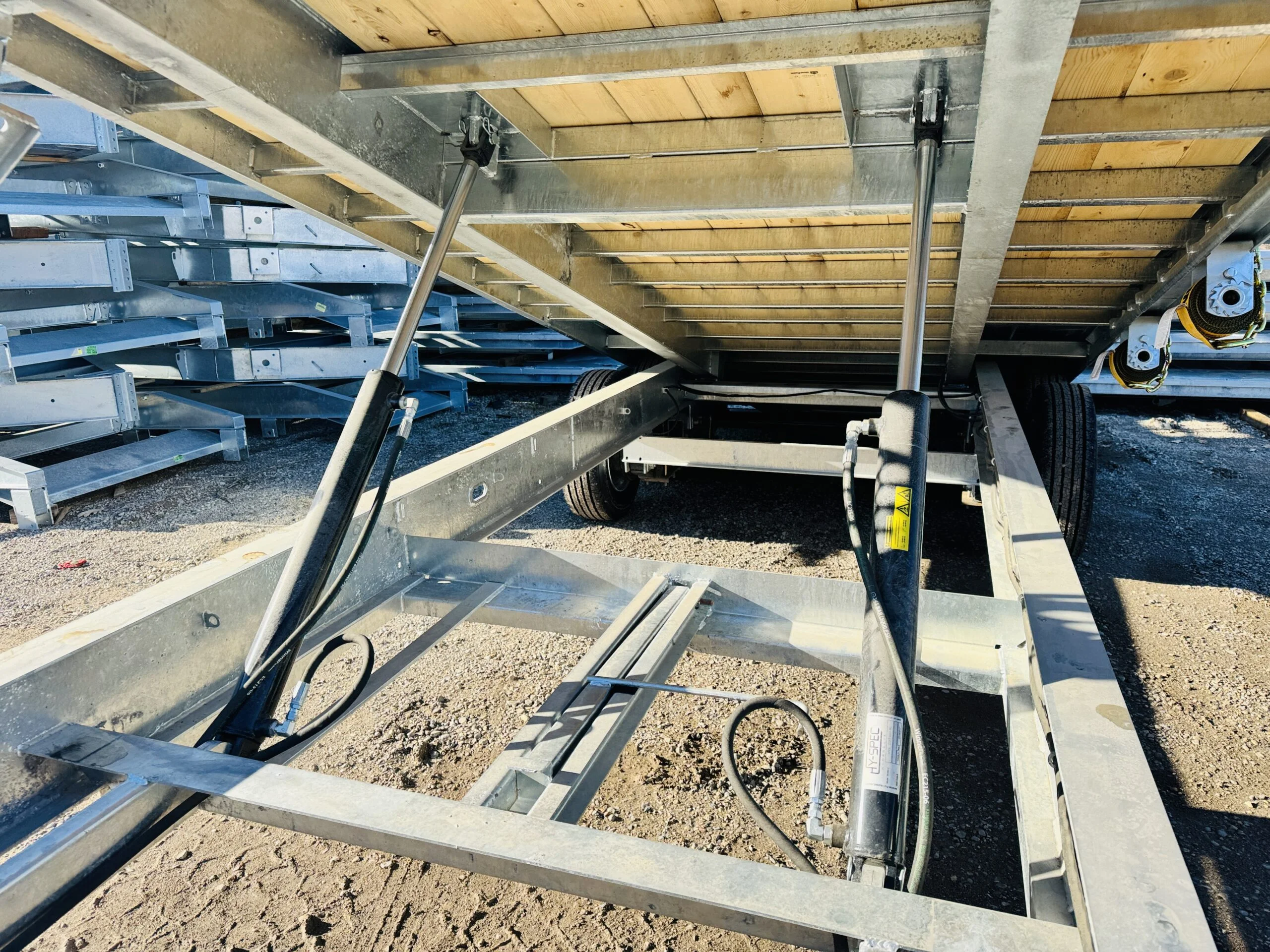

- Dual cylinder tilt design
- Deck tilts at 15° angle
- Tilt deck latch lever
- Heavy-duty winch plate
Power & Control

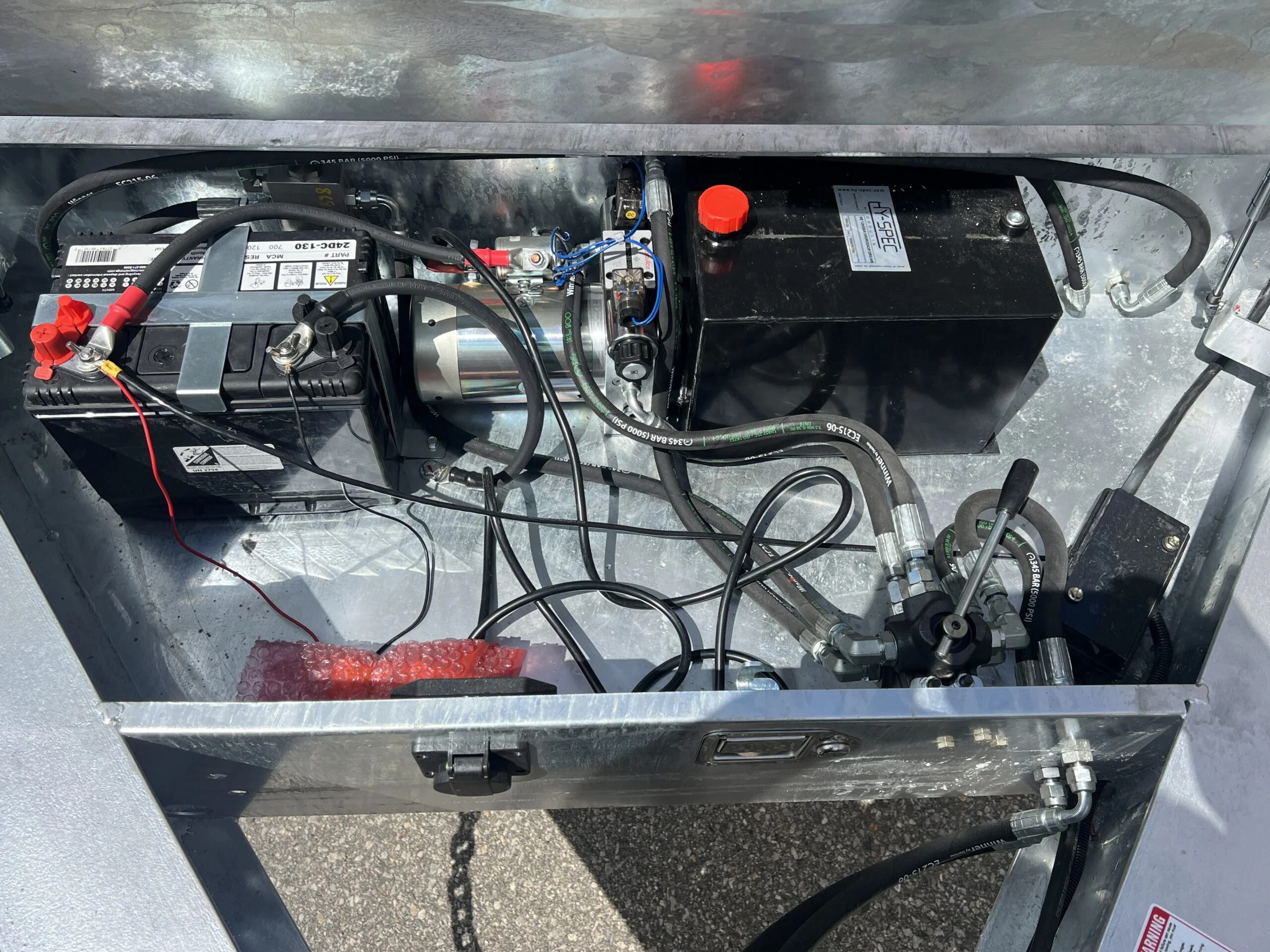

- 2-stage power unit with power-up/power-down function
- Deep-cycle battery

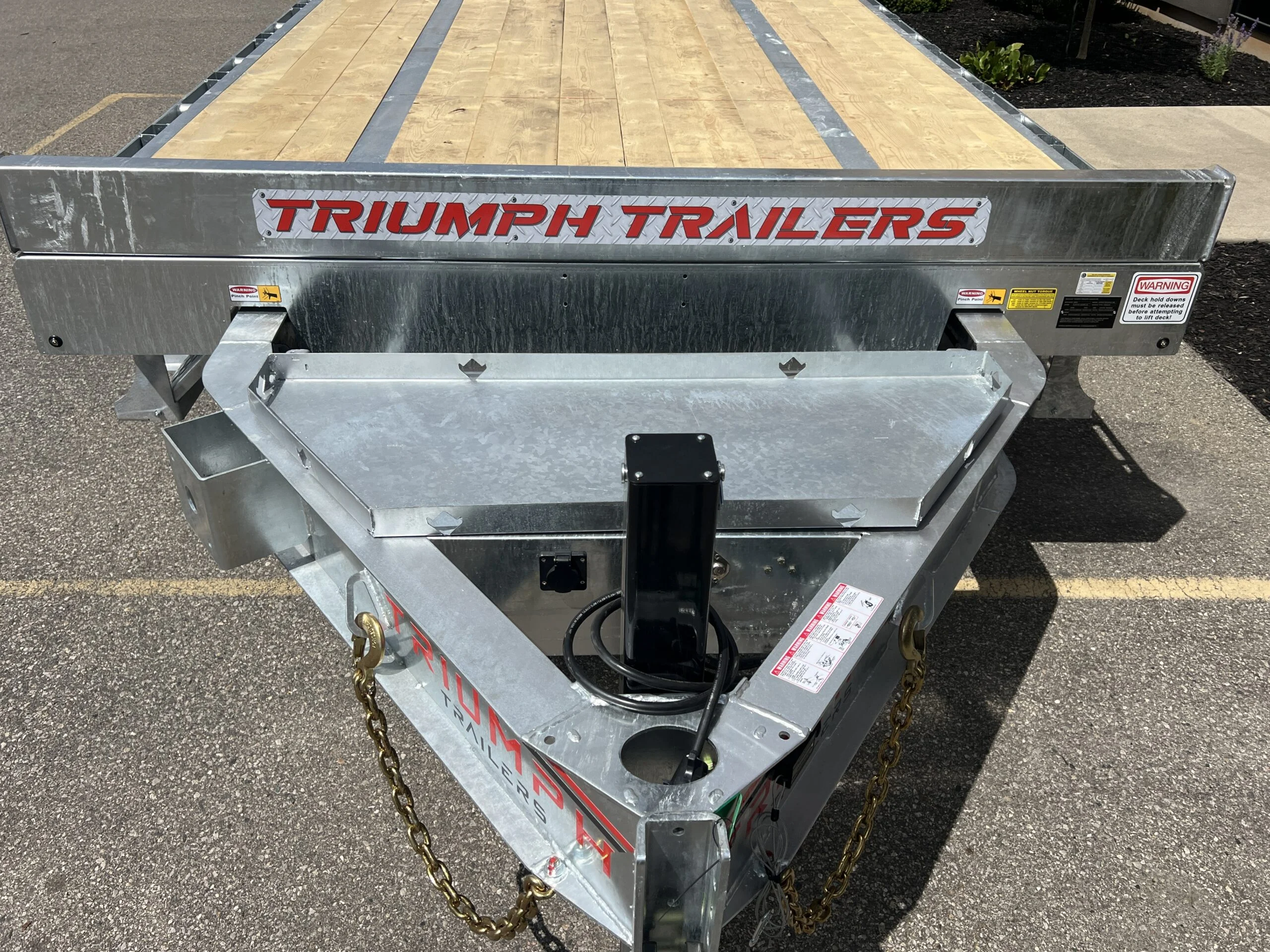

- Front toolbox

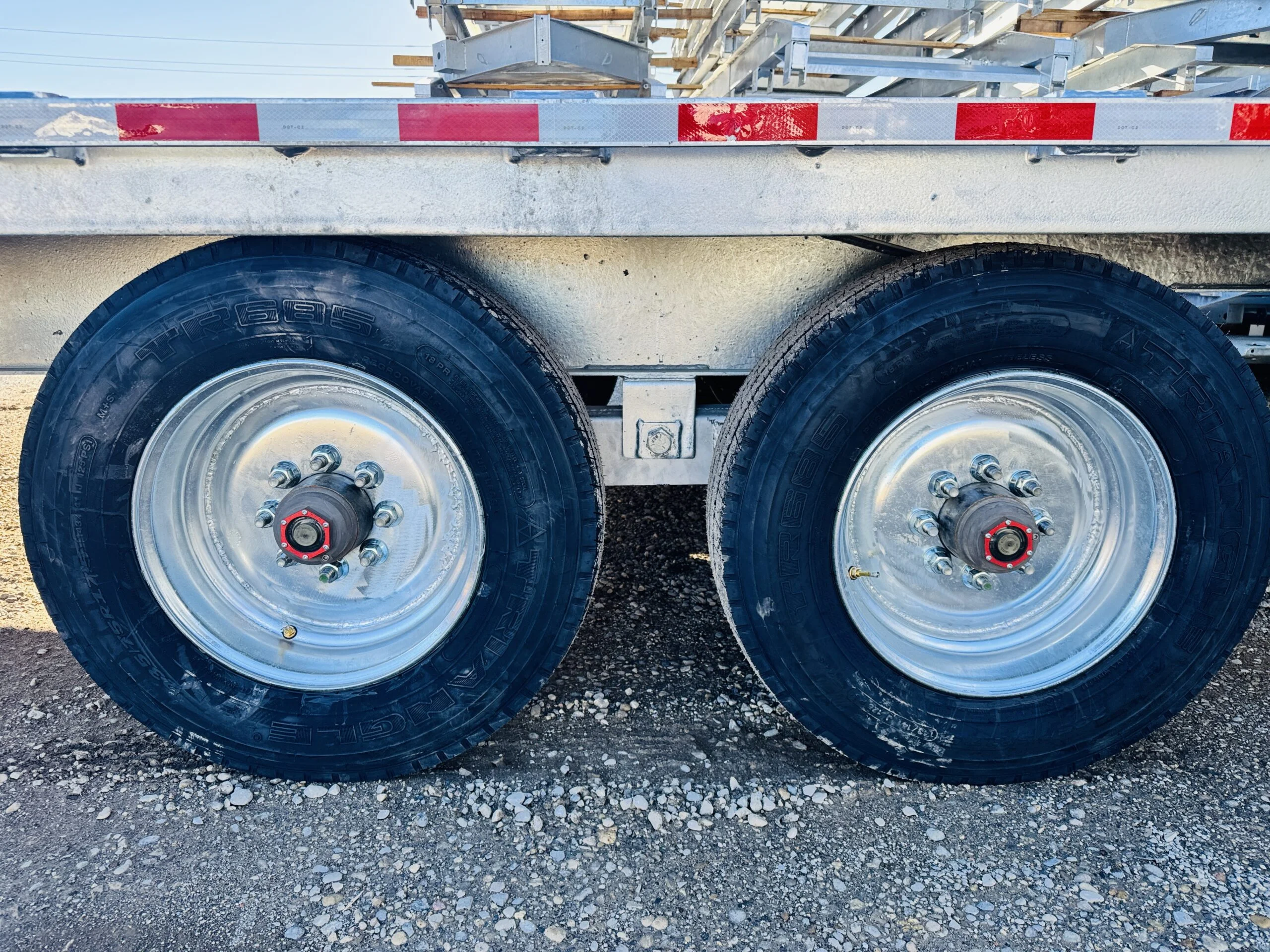

Axles & Wheels
- Tandem 7K axles, both with electric brakes
- Oil bath hubs
- 235/75R17.5 tires on galvanized wheels (16 ply)
Convenience & Safety Features
- Integrated toolbox with built-in 110V charger
- Drop-down, spring-loaded light bar
- 12K quick-adjust, spring-loaded jack

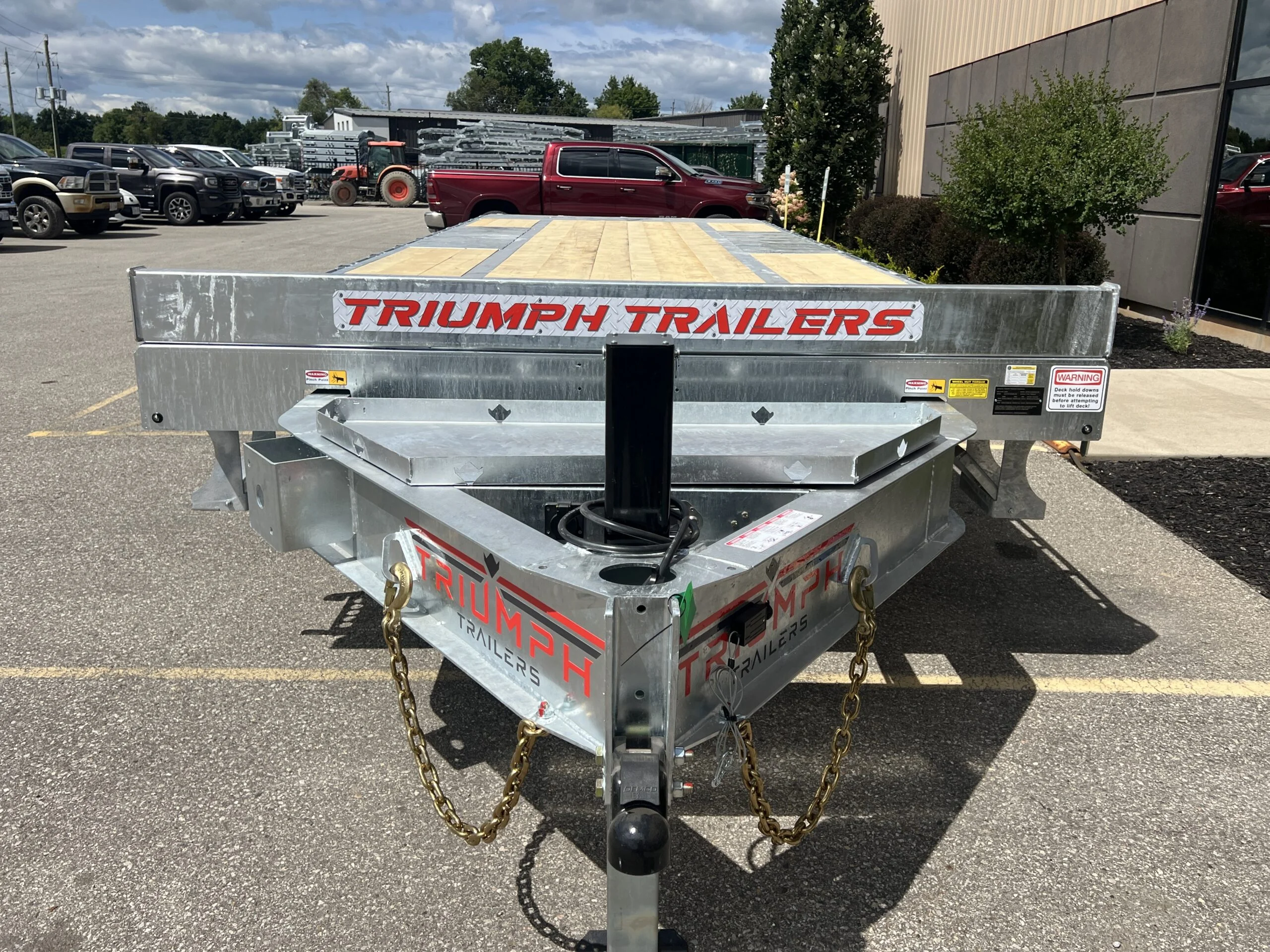

- 2 5/16″ adjustable coupler, Demco EZ Latch
- Spare tire mount
Tie-Downs & Deck Accessories
- 2″ rub rails with stake pockets every 2′
- 2″ chain spools every 2′
- Chain slots in knife edge
- Fold-down steps
Options
- Hydraulic jack upgrade
- Undermount toolbox
- Winch tracking
- Spare tire
- Pintle ring
- Removable container locks
