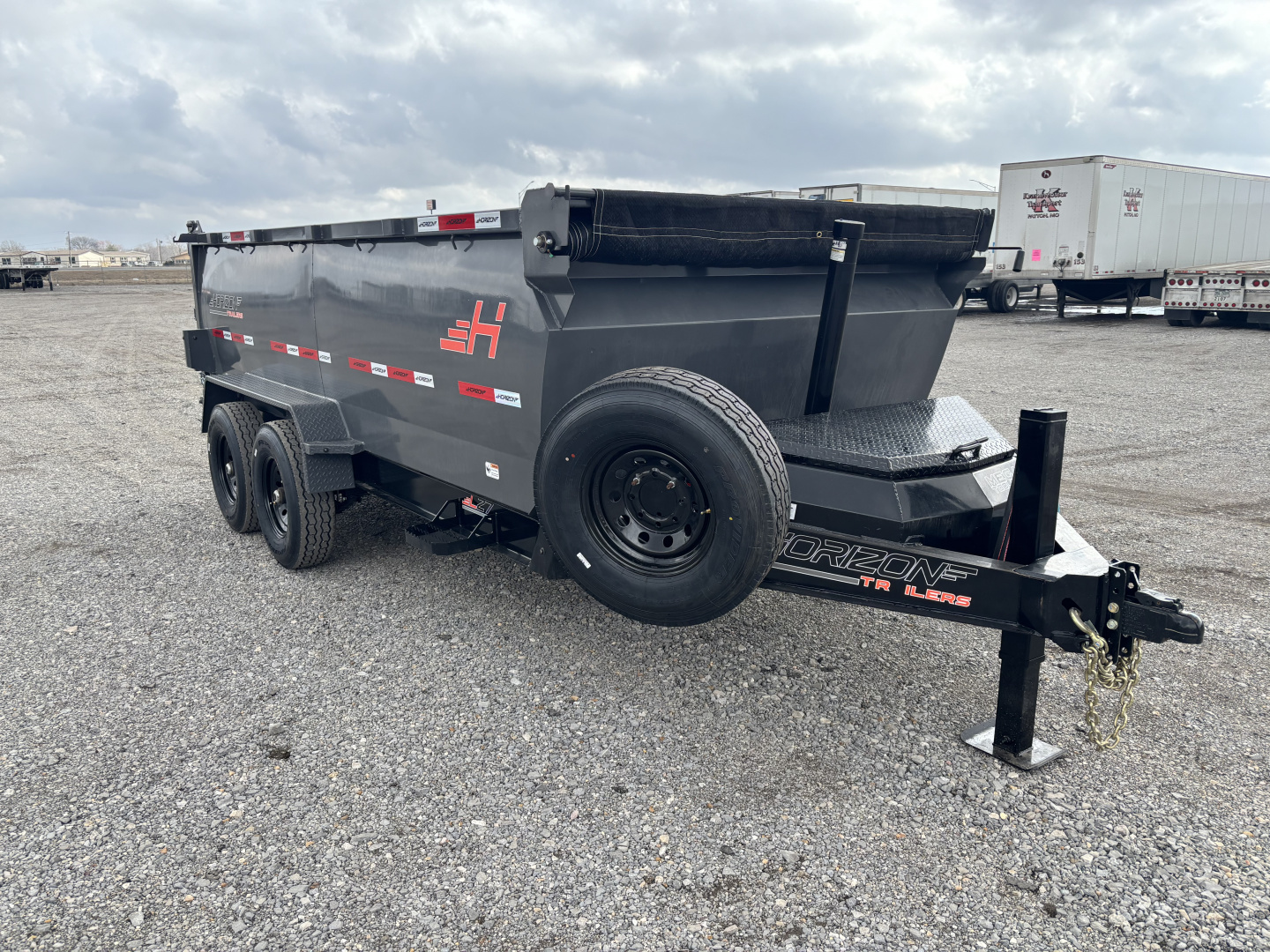

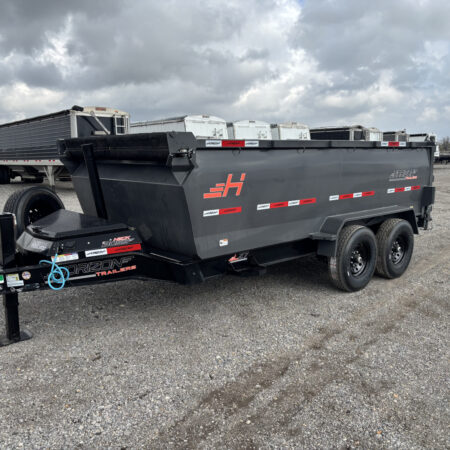

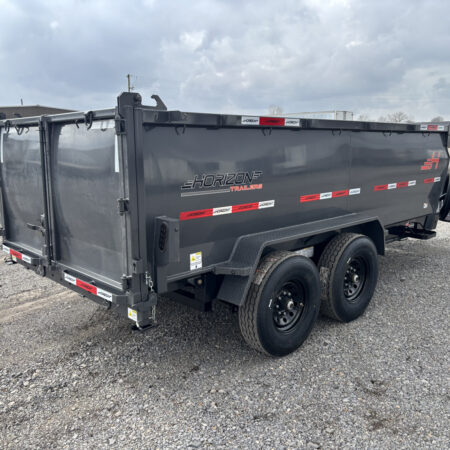

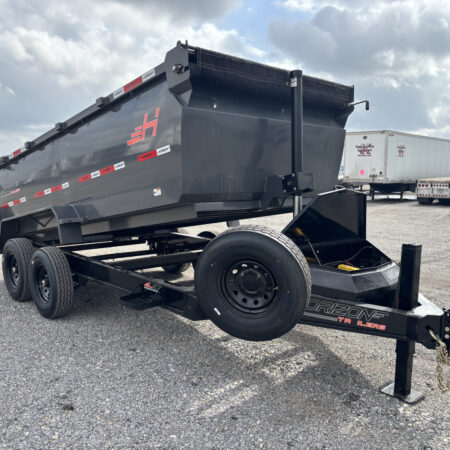

Horizon Trailers 14×42 Dump Trailer 14k GVWR
Horizon Trailers LZ7 – 14′ 14,000lb (GVWR), 42″ Sides, Spare, Dump Trailer
Bed Width: 83″
Side Height: 42″
GVWR 14,000 lbs.
Axles: 7,000 lbs.
Prep: Steel Grit Blasted
Paint Type: Powder Coat
Color: Black/ Ash Gray
Coupler Bumper Pull: Adjustable Coupler

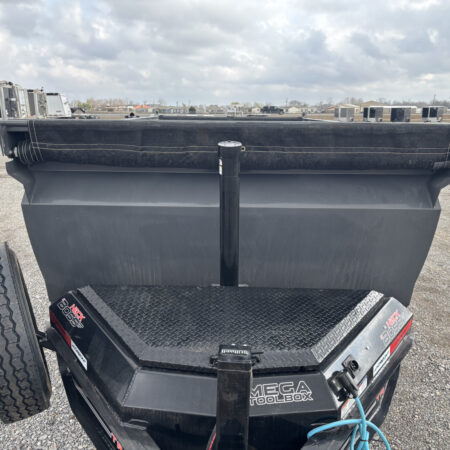

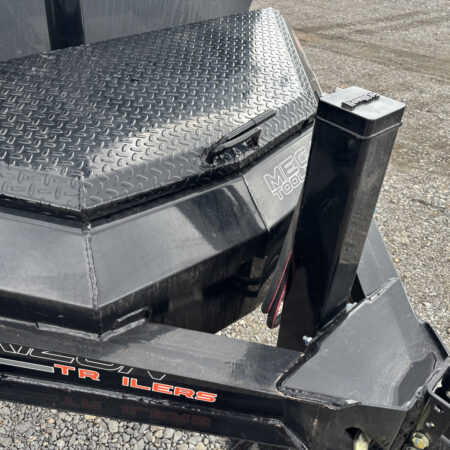

Bumper Pull: Lockable Toolbox
Tongue Type (Bumper Pull): 8″ Engineered I-Beam
Safety Chains: 3/8″ Grade 70 Safety Chain w/Clevis Hook (2 each)
Breakaway System: Electric Breakaway Kit
Main Frame Type: 8″ I-Beam (13 lbs./ft)

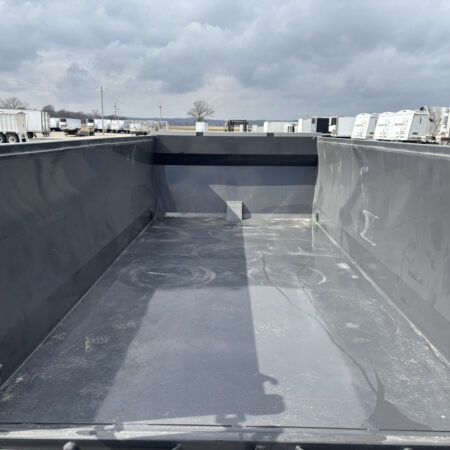

Flooring: 9ga. Steel Bed w/12ga. Rounded Steel Sides
Size: ST235/80R16 14 ply (4,400 lbs.) 14 ply
Rims: 16″ Black Mod Wheels
Spare Tire: ST235/80R16 14 ply (4,400 lbs.) 14 ply
Suspension/Brakes: Electric Brakes on both Axles Suspension Type: 6-Leaf Slipper Spring Suspension

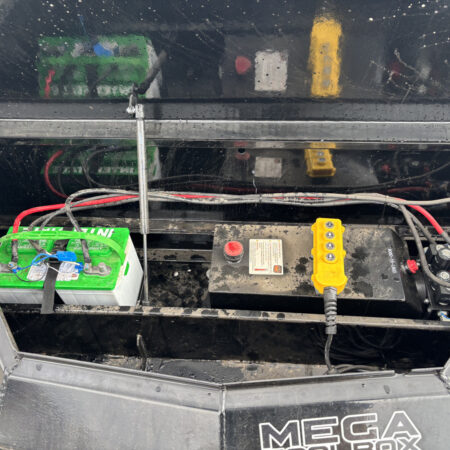

Battery: (1) 27 Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger
Wiring Harness: All-Weather Wiring Harness (7-Way RV)
Frame Wiring: Double Insulated Wiring Harness
System: Hydraulic – Power Up / Down
Pump: KTI 12V Hydraulic Pump
Controller: 14′ Control Cable

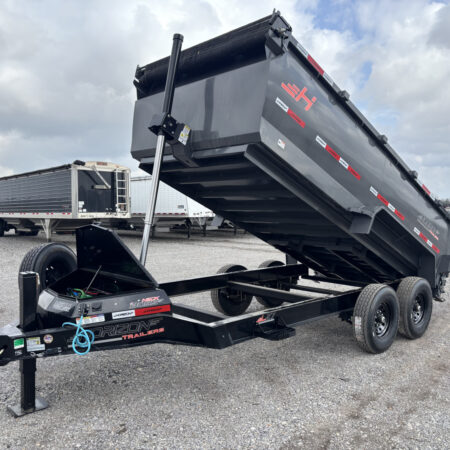

Telescopic Cylinder
Fenders: 14ga Diamond Plate Steel Fenders

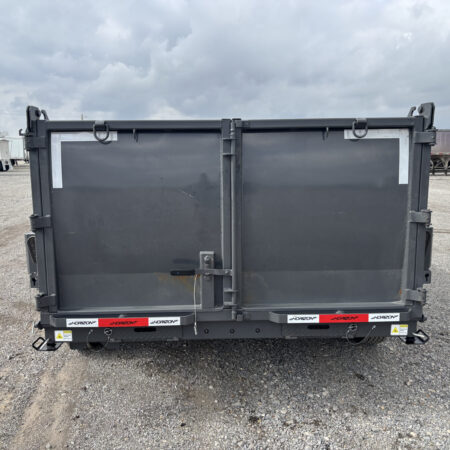

Gate: 3-Way Doors
Ramps: 79″ Slide-In Channel Ramps

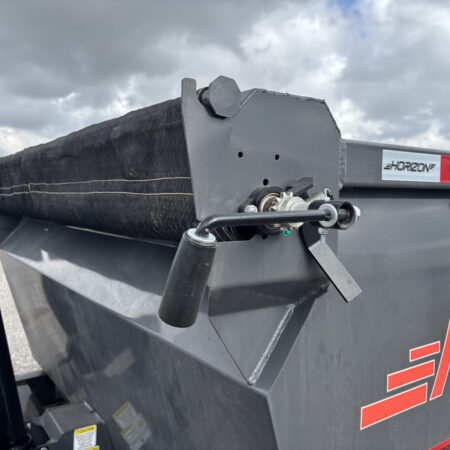

Tarp: Crank Style Roll-Up Tarp

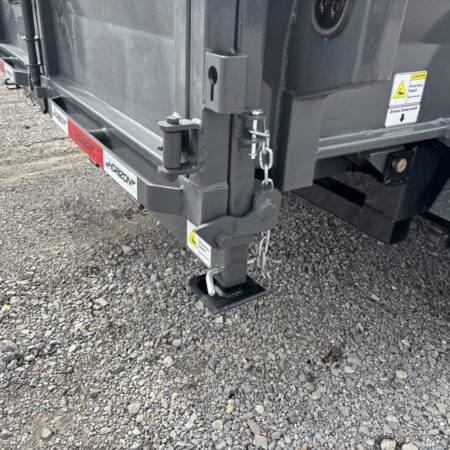

Pair of Rear Stabilizer Jacks
Steps On Both Sides
