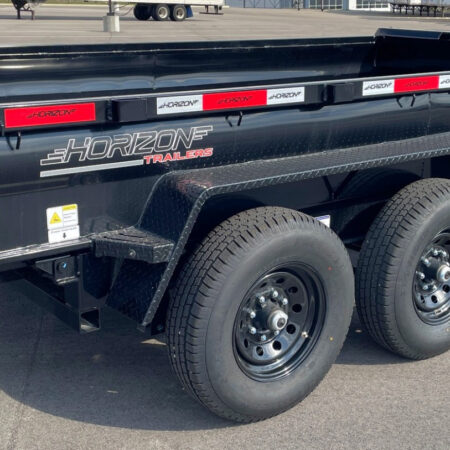

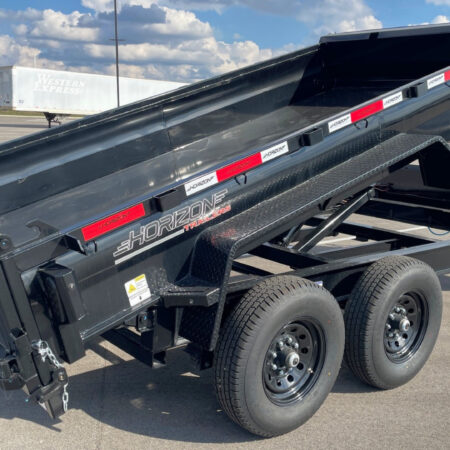

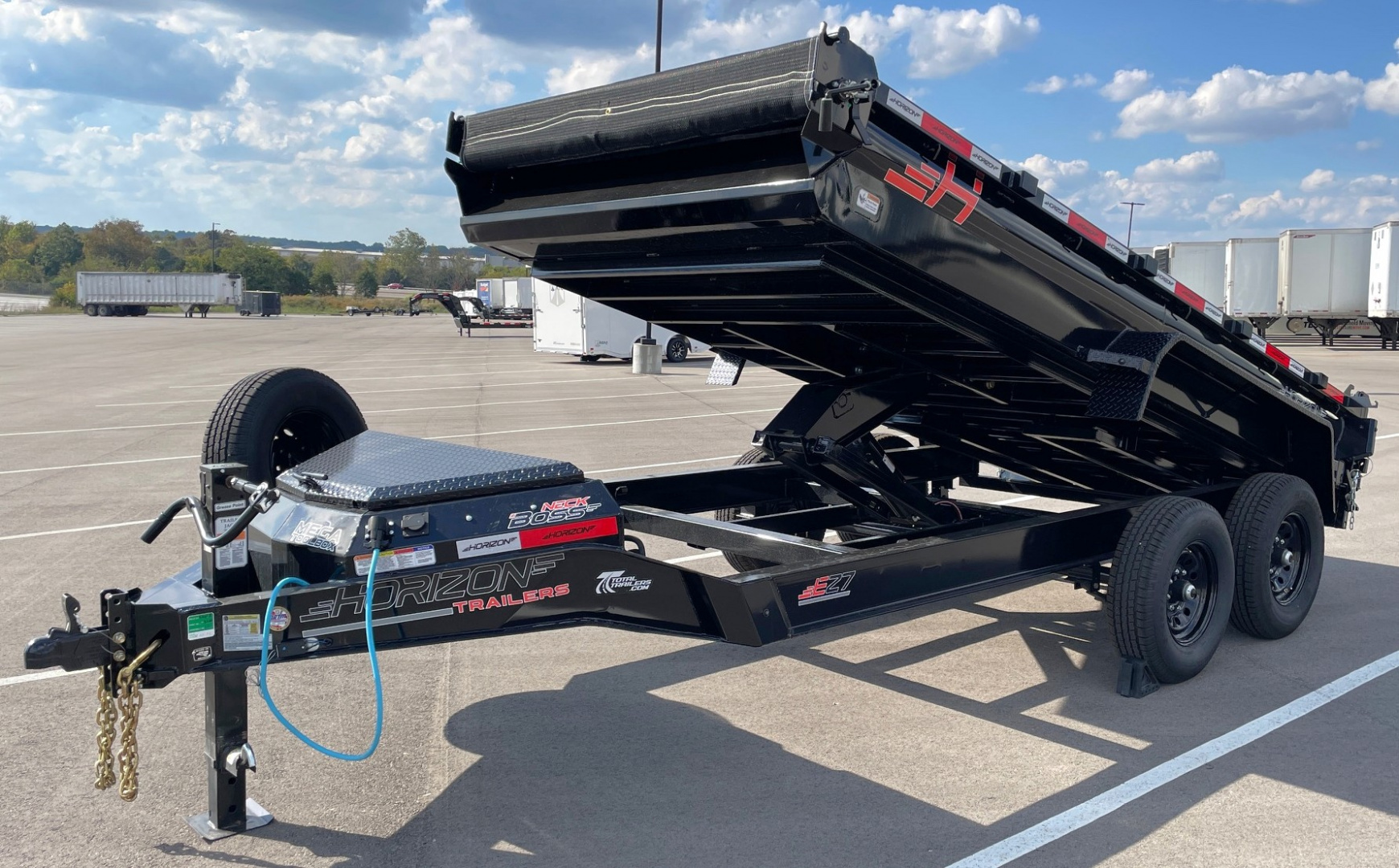

Horizon 14×83 EZ7 BLACK Dump Trailer 14k GVWR
Horizon 14’x 83″ EZ7 BLACK Dump Trailer 14,000 GVWR, Spare, Ramps
14’ LONG x 83” Wide x 19” Sides
GVWR 14000
WARRANTY: 3 Year Frame/ 1 Yr Parts / 5 Yr Axles
Empty weight: 4460 lbs.
PAYLOAD 9540 lbs.
2- 7 K Electric Brake Auto Adjust Ex Lube Spring Axles (5 yr Warranty)
Bed Height 28”
Powdercoat Paint
8 ”Engineered I-Beam NECK BOSS Tongue/Frame

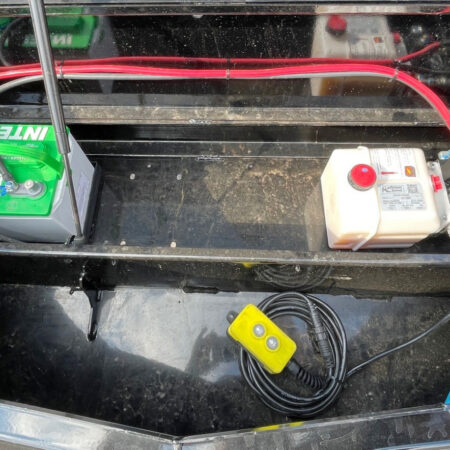

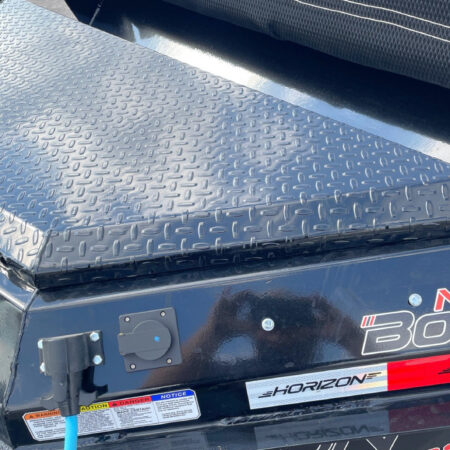

Mega Lockable Toolbox (Houses Battery & Pump
(4) D-Rings Welded Inside the Box

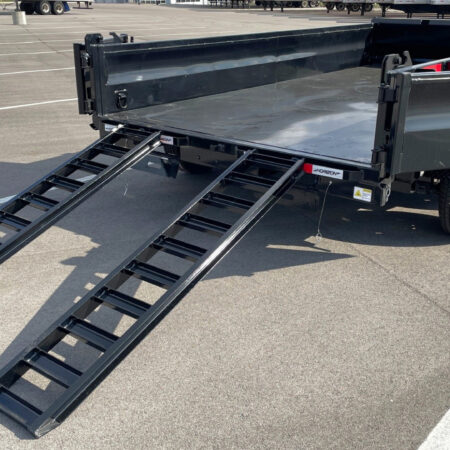

Slide in Ramps
Welded on Spare Tire Mount with SPARE TIRE
Extra Marker Lights for Visibility
Side Step on BOTH Sides
Coupler: 2 5/16 Adjustable auto latch (17k)
Jack: 12K Side Wind Spring Loaded Drop Leg Jack
(2) Safety Chains: 3/8 Grade 70 Safety Chains w/ Clevis Hooks

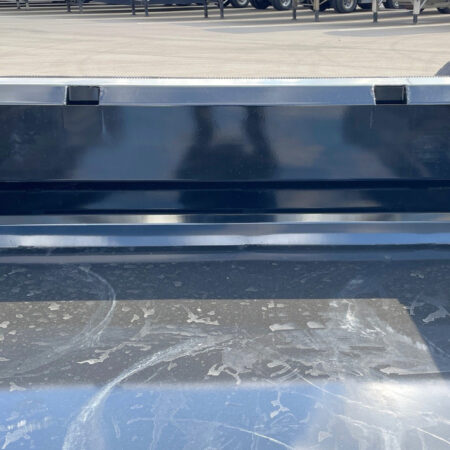

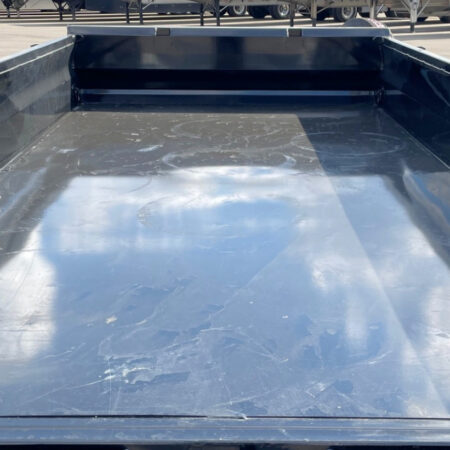

Floor: 9 Gauge Steel
Sides: 12 Gauge (Rounded Steel)
Frame: 3”x5”x ¼” Angle Iron
Crossmembers: 3” on 16” Centers
Dump Angle: 40-48 Degrees

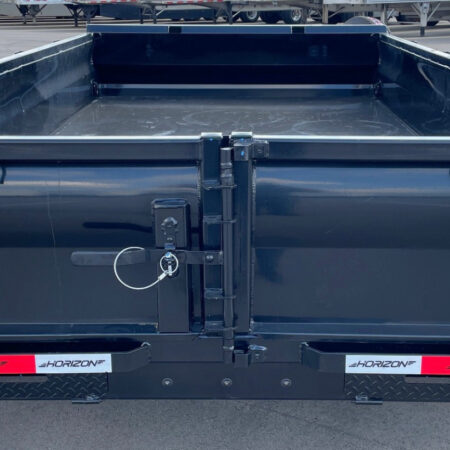

Gate/Door: 3 Way spreader gate
Stake Pockets
Fenders: 12-gauge Diamond Plate
Manual Tarp Kit

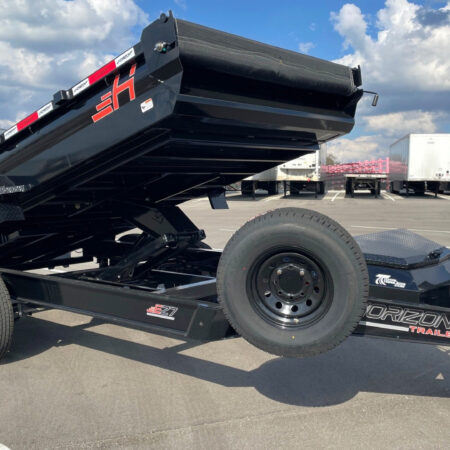

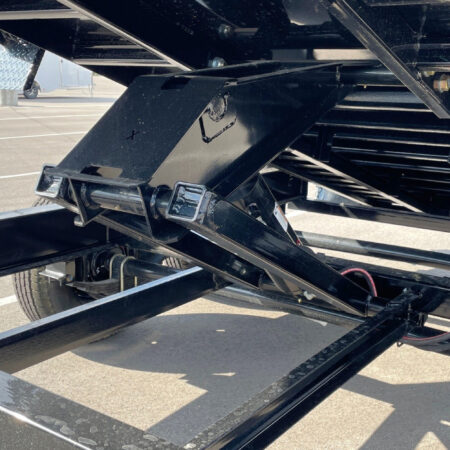

LIFT SYSTEM: Hoist w/ 5”x16” Single Push Cylinder (15K)
14’ Corded Remote: POWER UP / POWER DOWN
KTI 12v Hydraulic Pump

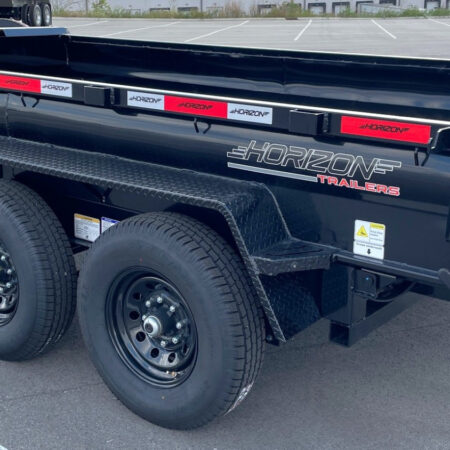

16” Black Wheels: ST235/ 80R 16 (8 on 6.5) 10 PLY
Suspension: Spring
Battery: Interstate 27 Deep Cycle Battery
110 Integrated Trickle Charger
All Weather 7 pin wiring harness (double insulated)
