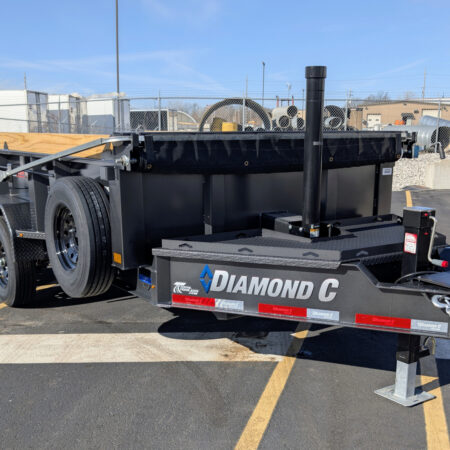

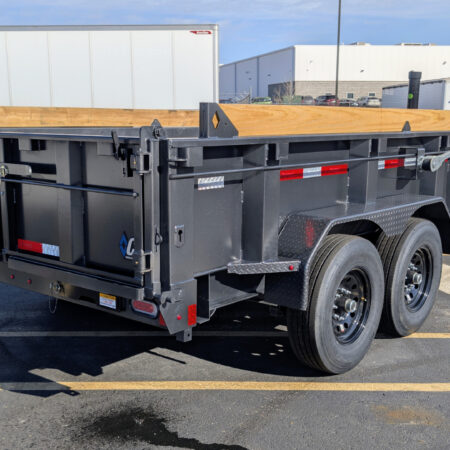

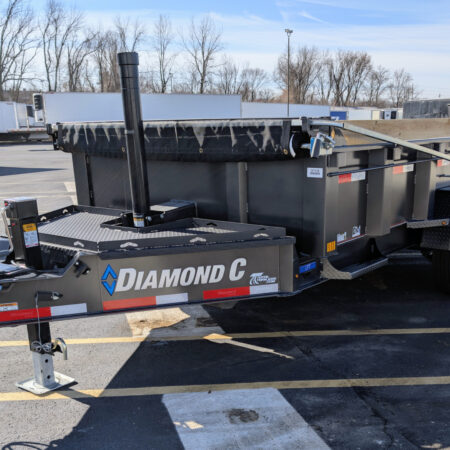

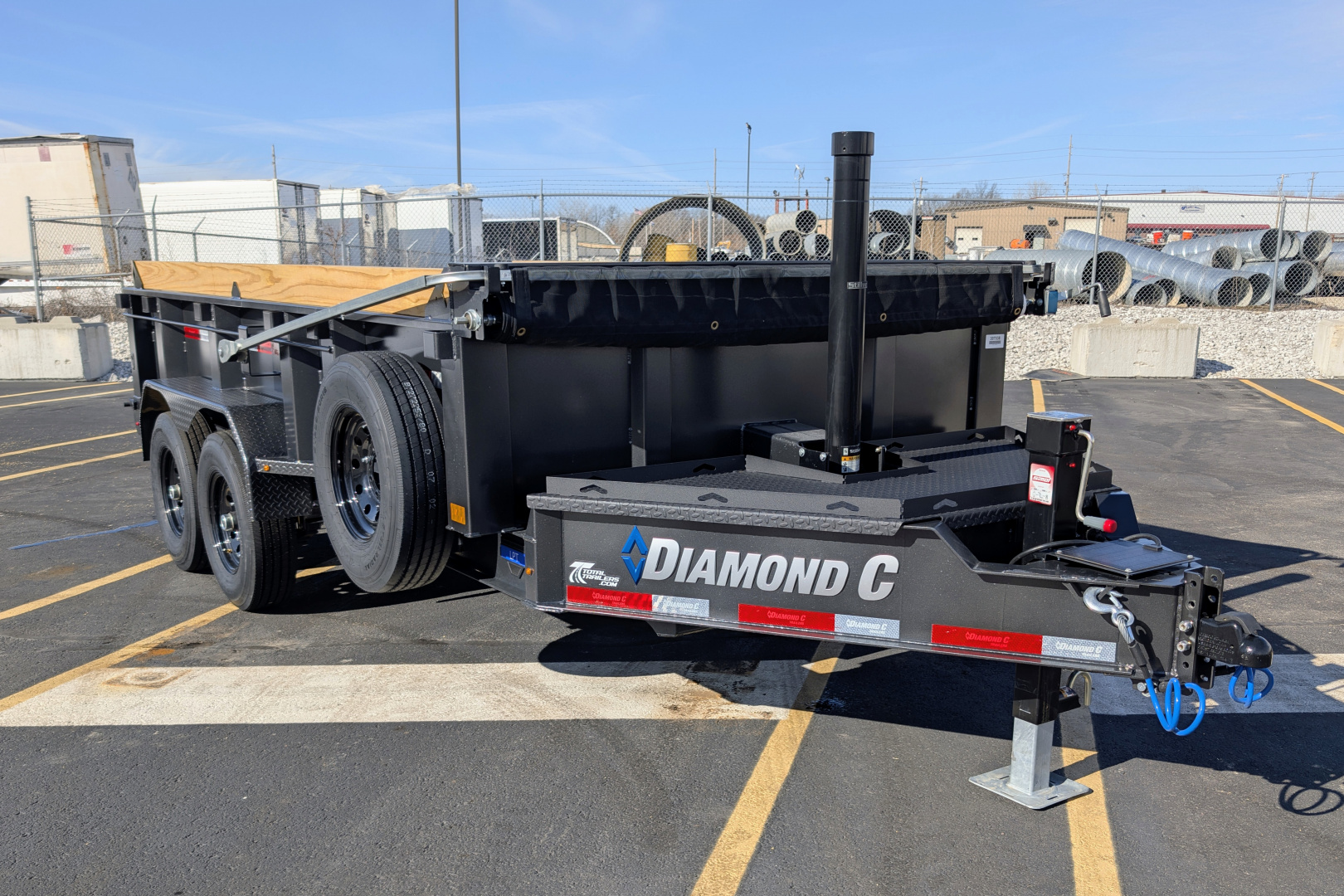

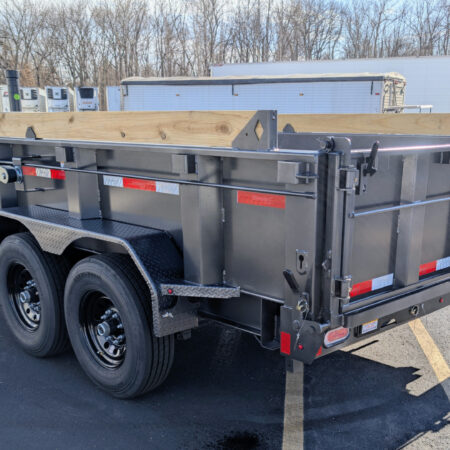

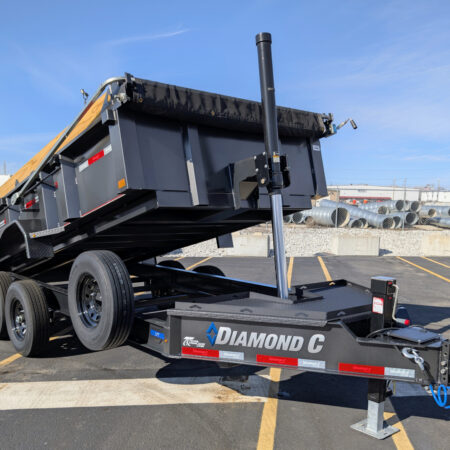

Diamond C 14ft Dump Trailer
Diamond C LPT-207 14′ Telescopic, 14.9K (GVWR) Dump Trailer
FRAME SIZE, L14X82
GVWR 14,900
Payload: 9980 lbs

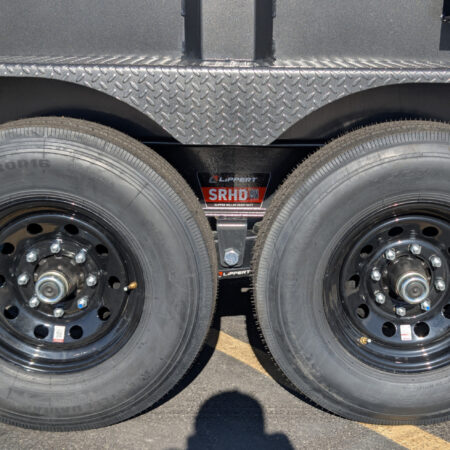

AXLE, 2 – 7K STRAIGHT AXLE, ELECTRIC DRUM BRAKES
SUSPENSION, 6-LEAF SLIPPER ROLLER SPRINGS

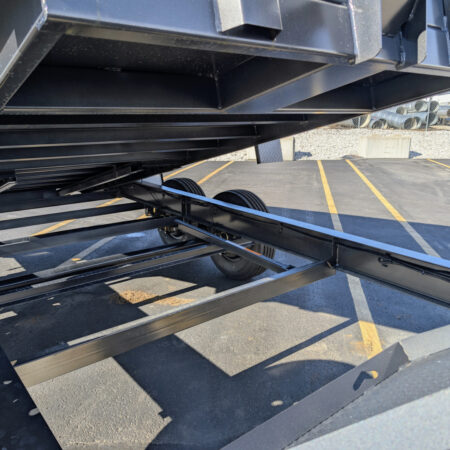

FRAME, 8″X15# I-BEAM; 16″ CENTER CROSSMEMBERS
COUPLER, 2-5/16″, 21K DEMCO EZ-LATCH (ADJ CHANNEL)
TONGUE, ENGINEERED W/ HD V-TONGUE LID
SPAREMOUNT • PASSENGER (CURB) SIDE

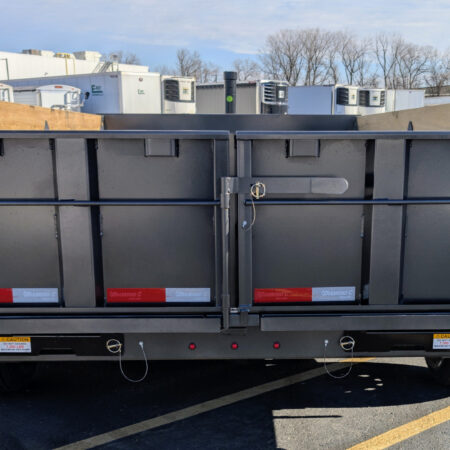

GATE, 3-WAY DUMP GATE (STANDARD)
RAMPS, 72″ REAR SLIDE-IN RAMPS (3″ CHANNEL)
SIDES, 24″ TALL, 10GA INTEGRAL W/ FLOOR (L14)
BOARD BRACKETS W/BOARDS & RAISED FRONT
FENDER, 14 GA TEARDROP, DIAMOND PLATE, WELD-ON
STEP. 1 – 24″ SIDE STEP· DRIVER SIDE
STABILIZER JACK, DROP-LEG (PAIR}
JACK, SINGLE 12K SIMOL 2-SPEED DROP-LEG JACK

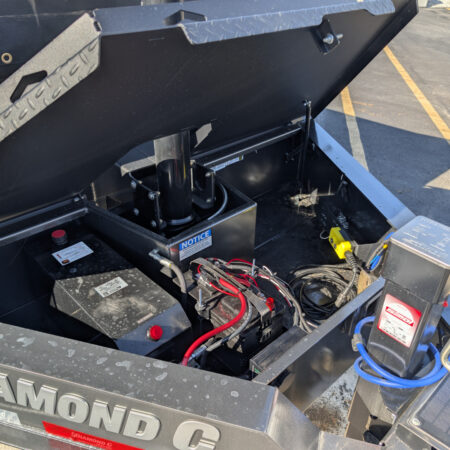

HYDRAULIC SYSTEM, POWER UP, GRAVITY DOWN
BATTERY· GROUP 27

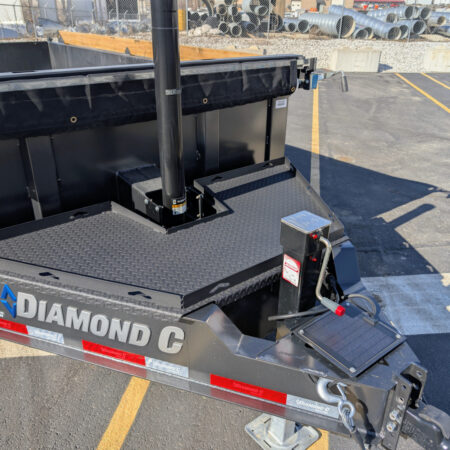

SOLARPULSE CHARGING SYSTEM 7 WATT
TIE DOWN, STANDARD 5/8″ D-RINGS (4 TOTAL)
TIRES, ST235/80R16 RADIAL 14 PLY, 8 HOLE BLACK
SPARE, ST235/80R16 RADIAL 14 PLY, 8 HOLE BLACK
PAINT, CARBON METALLIC GRAY
LIGHTS, ALL LED
TARP, 20′ HEAVY DUTY, BLACK MESH W/LONG ARM TARP SYSTEM
